AquaStar | PLP300S | Pipeline Smart Model Variable Speed Pump, 3 HP, 230 V
Couldn't load pickup availability
Got questions?
Feel free to get in touch

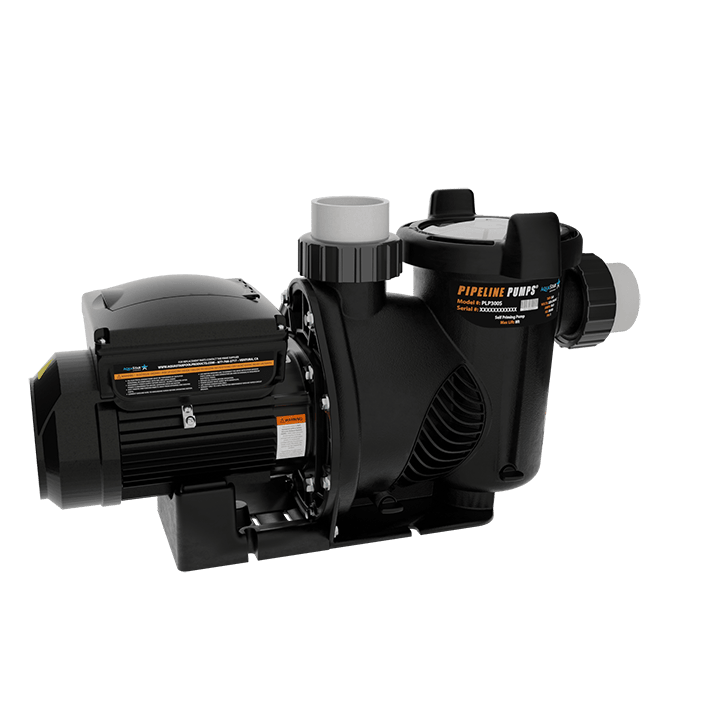

The AquaStar PLP300S Pipeline Smart Model is a high-performance, 3 HP variable-speed pool pump built for demanding aquatic systems. Operating at 230V, it delivers precise water flow management with four programmable speeds ranging from 800 to 3,400 RPM. Designed for large pools or systems with heavy plumbing and filtration loads, this pump balances power with energy efficiency.
Key Features
-
3 horsepower variable speed motor
-
Four programmable speed settings from 800 to 3,400 RPM
-
Permanent Magnet Motor (PMM) drive system for improved efficiency
-
Totally Enclosed Fan Cooled (TEFC) motor design for durability and protection
-
Noise-reducing vibration dampening insert to minimize operational sound
-
RS-485 communication port for integration with automation systems
-
Dual union connection sizes: 2″ and 2½″ sockets for plumbing flexibility
-
Large capacity self-aligning HDPE basket with quick-release, quarter-turn lid
-
High-efficiency volute design to optimize flow and reduce resistance
Product Overview
The ABPL300S is engineered for pool owners who need high flow and flexibility. Its 3 HP motor paired with variable speed control allows you to tailor pump speed to the specific demands of filtration, heating, water features, or cleaning. At lower speeds, it operates more quietly and uses far less electricity than a single speed pump running at full power constantly.
Durability is built into every aspect of this pump. The PMM drive and TEFC motor reduce heat and wear. The vibration dampening insert and robust lid design improve user comfort and maintain ease of maintenance. With plumbing connections for both 2″ and 2½″ unions, it fits a wide range of installations.
For large residential or light commercial pools with high flow requirements, the PLP300S provides reliable performance, programmable control, and energy savings through adjustable operation.
Frequently asked questions
Is a variable speed pump worth it?
Variable speed pumps draw dramatically less power at low speed because energy use falls far faster than flow does. Many jurisdictions now require variable speed for new and replacement residential pool pumps above a certain horsepower, so check local code before buying single-speed.
What is the part number for this pump?
AquaStar lists this pump under part number PLP300s. Quote PLP300s when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
How do I match a pump to my pool?
Work from the plumbing rather than the pool size: line diameter, total dynamic head and the flow your filter and heater can accept all cap the useful pump size. An oversized pump on undersized plumbing wastes power and can exceed the filter's rated flow.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your AquaStar equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
What do I need to check before installing this pump?
Confirm the voltage, the union or port sizes and the mounting footprint against your existing installation. Pump replacement usually involves electrical connections and may require a licensed electrician depending on local requirements.
Is there a warranty on this pump?
It carries the standard AquaStar manufacturer warranty. The terms are set by AquaStar, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
