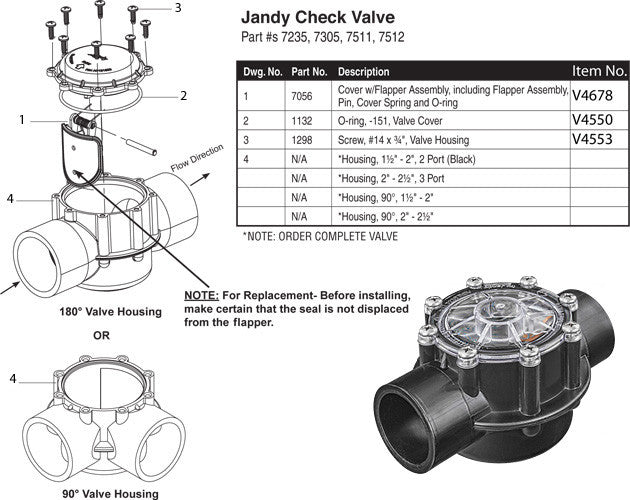

Jandy 7307 Pro Series Large Spring Check Valve, 180° Straight, 2.5" x 3" (170 GPM) — Genuine OEM
Couldn't load pickup availability
Got questions?
Feel free to get in touch
The Jandy Pro Series 7307 Large Spring Check Valve is a genuine Zodiac/Jandy 180° straight-through check valve sized 2.5" x 3" — the high-flow model. It handles flow rates up to 170 GPM with minimal head loss and is designed to connect easily with the Jandy 3HP Stealth pump, making it ideal for spas and water features that demand high flow.
Key Features
- High-flow design: Handles up to 170 GPM with minimal head loss.
- Large 2.5" x 3" size: Connects directly with the Jandy Pro Series 3HP Stealth pump.
- 180° straight-through flow for inline installation.
- Clear lid & red seal plate: Easy inspection and debris clearing.
- Chemical-resistant superalloy spring: Built for salt and chemical dosing systems.
- Tough CPVC construction: Corrosion- and chlorine-resistant.
Specifications
- Part Number: 7307
- Type: Large spring check valve, 180° straight-through
- Size: 2.5" x 3"
- Flow: Up to 170 GPM
- Material: CPVC
- Brand: Jandy Pro Series (Zodiac) — genuine OEM
Frequently Asked Questions
What makes the Jandy 7307 different from the other check valves?
It's the large 2.5" x 3" high-flow model, rated to 170 GPM with minimal head loss, and designed to connect directly with the Jandy 3HP Stealth pump. The smaller straight-through models are the 7235 (1.5"–2") and 7305 (2"–2.5").
What size plumbing does it fit?
2.5" to 3" plumbing, 180° straight-through.
Is it good for high-flow applications?
Yes — it's specifically built for spas and water features requiring high flow rates, up to 170 GPM.
Can it be used with a salt system?
Yes — the superalloy spring is chemical-resistant for salt chlorinators and chemical dosing.
Is it genuine Jandy?
Yes — a genuine Jandy Pro Series (Zodiac) OEM valve.
Frequently asked questions
How do I identify the right replacement valve?
Valves are specified by port size, port count, connection type - slip, threaded or union - and body material. Measure the pipe outside diameter rather than guessing at nominal size, since PVC sizing does not match the physical measurement.
What is the part number for this valve?
Pro Series lists this valve under part number 7307. Quote 7307 when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
Why is my valve leaking or hard to turn?
Stiff operation and weeping around the stem usually mean dried-out or chemically degraded seals. Many valve bodies can be rebuilt with a service kit rather than replaced outright, which avoids cutting into the plumbing.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Pro Series equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Can I automate this valve?
Diverter valves in this style commonly accept a valve actuator so an automation system can switch them, but the actuator and its mounting hardware are separate items. Confirm the valve body is a type the actuator is rated to drive before ordering.
Is there a warranty on this valve?
It carries the standard Pro Series manufacturer warranty. The terms are set by Pro Series, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
