Jandy R0357300 Filter Tank Top Assembly, 580 Sq Ft — CV580, CL580, DEV60, DEL60 — Genuine OEM
Couldn't load pickup availability
Got questions?
Feel free to get in touch

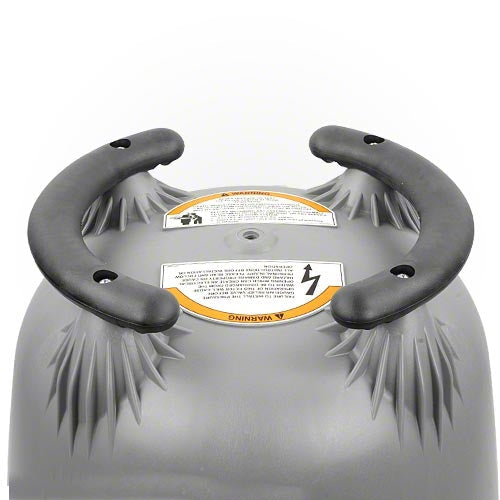

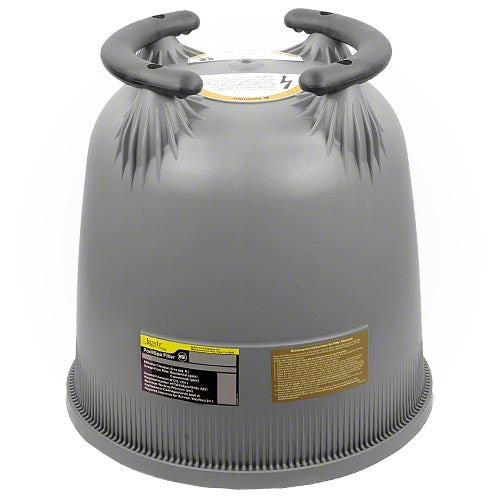

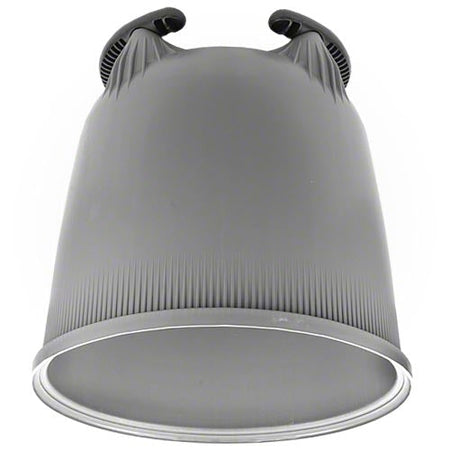

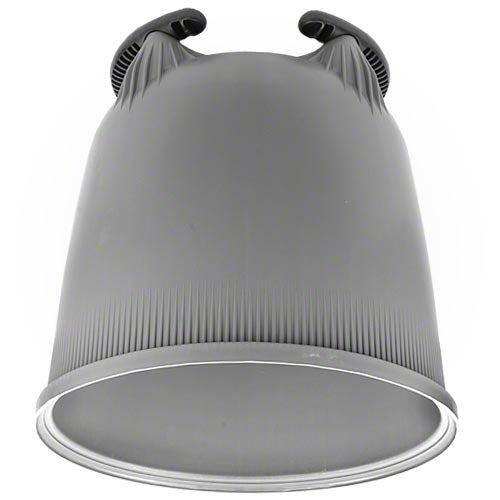

The Jandy R0357300 Tank Top Assembly is the genuine Zodiac/Jandy replacement upper tank half for 580 sq ft cartridge filters and 60 sq ft DE filters. If your filter's top section is cracked, warped, or leaking at the clamp band, this OEM tank top restores a proper seal without replacing the entire filter.
Key Features
- Genuine Jandy OEM part: Exact fit and finish for a leak-free clamp-band seal.
- Fits 580 sq ft models: CV580, CL580, DEV60, and DEL60 filters.
- Heavy-duty construction: Fiberglass-reinforced polymer built to handle system pressure and UV exposure.
- Restores your filter: Repair a cracked or leaking tank top instead of buying a whole new filter.
- Chemical resistant: Withstands chlorine, salt, and standard pool chemistry.
Specifications
- Part Number: R0357300
- Type: Filter tank top / upper tank half
- Size: 580 sq ft (cartridge) / 60 sq ft (DE)
- Fits: Jandy CV580, CL580, DEV60, DEL60
- Approx. Weight: 33.7 lb
- Brand: Jandy (Zodiac) — genuine OEM
Frequently Asked Questions
Which Jandy filters does the R0357300 fit?
It fits the 580 sq ft cartridge models (CV580, CL580) and the 60 sq ft DE models (DEV60, DEL60). For the smaller 340 and 460 sq ft filters, you need the R0554700 tank top instead.
What's the difference between R0357300 and R0554700?
Size. The R0357300 is the 580 sq ft / DEV60 tank top; the R0554700 covers 340 and 460 sq ft models. They are not interchangeable — check the model number on your filter label.
Does this include the clamp band or O-ring?
No. This is the tank top only. The tank O-ring (R0357800) and clamp ring assembly (R0357400) are sold separately — most techs replace the O-ring at the same time.
Do I need the tank bottom too?
Only if the lower half is also damaged. The matching tank bottom assembly is R0466500.
Is this a genuine Jandy part?
Yes — genuine Zodiac/Jandy OEM, which matters here because aftermarket tank halves often seal poorly at the clamp band.
How do I know if my tank top needs replacing?
Common signs are hairline cracks, water weeping from the clamp seam that persists after replacing the O-ring, or visible warping/distortion around the band groove.
Frequently asked questions
What size filter do I need?
Filter area is matched to pump flow rate, not to pool volume alone. An oversized filter runs longer between cleanings and puts less back pressure on the pump, which is why installers routinely size up rather than to the minimum.
What is the part number for this filter?
Jandy lists this filter under part number R0357300. Quote R0357300 when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
How do I know when to clean the filter?
Note the pressure on a clean filter, then clean when the gauge climbs roughly 8 to 10 PSI above that baseline. Cleaning on a fixed calendar instead of the gauge either wastes effort or lets flow drop far enough to strain the pump.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Jandy equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Does this listing include the internal filter elements?
Check the specification section above. Filter tanks are sold both complete and as bodies without cartridges, grids or laterals, and those internals are a significant part of the replacement cost.
Is there a warranty on this filter?
It carries the standard Jandy manufacturer warranty. The terms are set by Jandy, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
