Jandy R0554700 Filter Tank Top Assembly, 340 & 460 Sq Ft — CV340, CV460, CL340, CL460, DEV48 — Genuine OEM
Couldn't load pickup availability
Got questions?
Feel free to get in touch

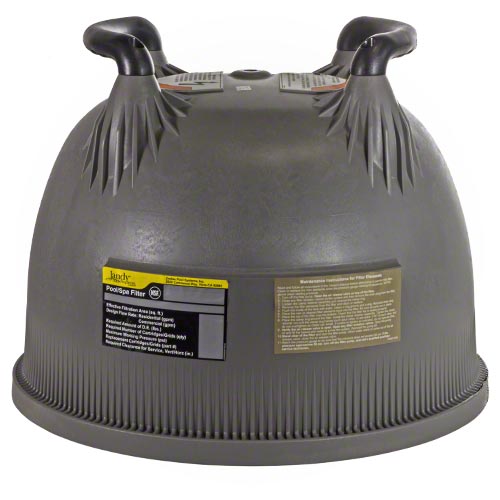

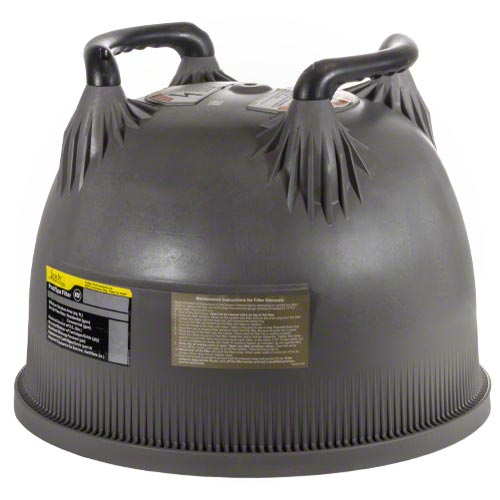

The Jandy R0554700 Tank Top Assembly is the genuine Zodiac/Jandy replacement upper tank half for 340 and 460 sq ft cartridge filters and select 48 sq ft DE models. Replace a cracked, warped, or leaking tank top and restore a proper clamp-band seal without buying a complete new filter.
Key Features
- Genuine Jandy OEM part: Exact molded fit for a leak-free clamp-band seal.
- Fits 340 & 460 sq ft models: CV340, CV460, CL340, CL460, and DEV48.
- Heavy-duty construction: Fiberglass-reinforced polymer rated for system pressure and UV exposure.
- Repair, don't replace: Far more economical than a complete filter replacement.
- Chemical resistant: Handles chlorine, salt systems, and normal pool chemistry.
Specifications
- Part Number: R0554700
- Type: Filter tank top / upper tank half
- Size: 340 & 460 sq ft (cartridge) / 48 sq ft (DE)
- Fits: Jandy CV340, CV460, CL340, CL460, DEV48
- Approx. Weight: 26.6 lb
- Brand: Jandy (Zodiac) — genuine OEM
Frequently Asked Questions
Which Jandy filters does the R0554700 fit?
The 340 and 460 sq ft cartridge models (CV340, CV460, CL340, CL460) and select 48 sq ft DE filters (DEV48). For 580 sq ft or DEV60 filters, use the R0357300.
How is this different from the R0357300?
Purely size. R0554700 covers 340 and 460 sq ft filters; R0357300 covers 580 sq ft and DEV60. They don't interchange — check the model number printed on your filter label.
Does it include the O-ring or clamp ring?
No — the tank top only. The tank O-ring (R0357800) and clamp ring assembly (R0357400) are sold separately, and replacing the O-ring at the same time is strongly recommended.
What about the tank bottom?
The matching lower half for these filters is R0466500 (CL series) or R0465400 (CV series).
How do I know my tank top is the problem?
Look for hairline cracks, water weeping from the clamp seam after a fresh O-ring, or warping around the band groove that prevents the clamp from seating evenly.
Is this genuine Jandy?
Yes — genuine Zodiac/Jandy OEM. Aftermarket tank halves frequently seal poorly at the clamp band, so OEM matters on this part.
Frequently asked questions
What size filter do I need?
Filter area is matched to pump flow rate, not to pool volume alone. An oversized filter runs longer between cleanings and puts less back pressure on the pump, which is why installers routinely size up rather than to the minimum.
What is the part number for this filter?
Jandy lists this filter under part number R0554700. Quote R0554700 when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
How do I know when to clean the filter?
Note the pressure on a clean filter, then clean when the gauge climbs roughly 8 to 10 PSI above that baseline. Cleaning on a fixed calendar instead of the gauge either wastes effort or lets flow drop far enough to strain the pump.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Jandy equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Does this listing include the internal filter elements?
Check the specification section above. Filter tanks are sold both complete and as bodies without cartridges, grids or laterals, and those internals are a significant part of the replacement cost.
Is there a warranty on this filter?
It carries the standard Jandy manufacturer warranty. The terms are set by Jandy, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
