Jandy R0688600 Variable Speed Drive — 2.2-2.7 HP Gen-II Non-SVRS, Fits VS PlusHP, VS FloPro & ePump — Genuine OEM
Couldn't load pickup availability
Got questions?
Feel free to get in touch

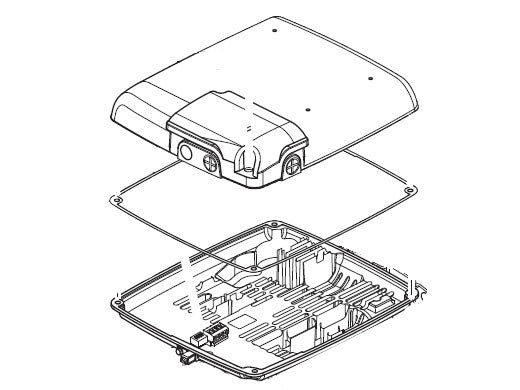

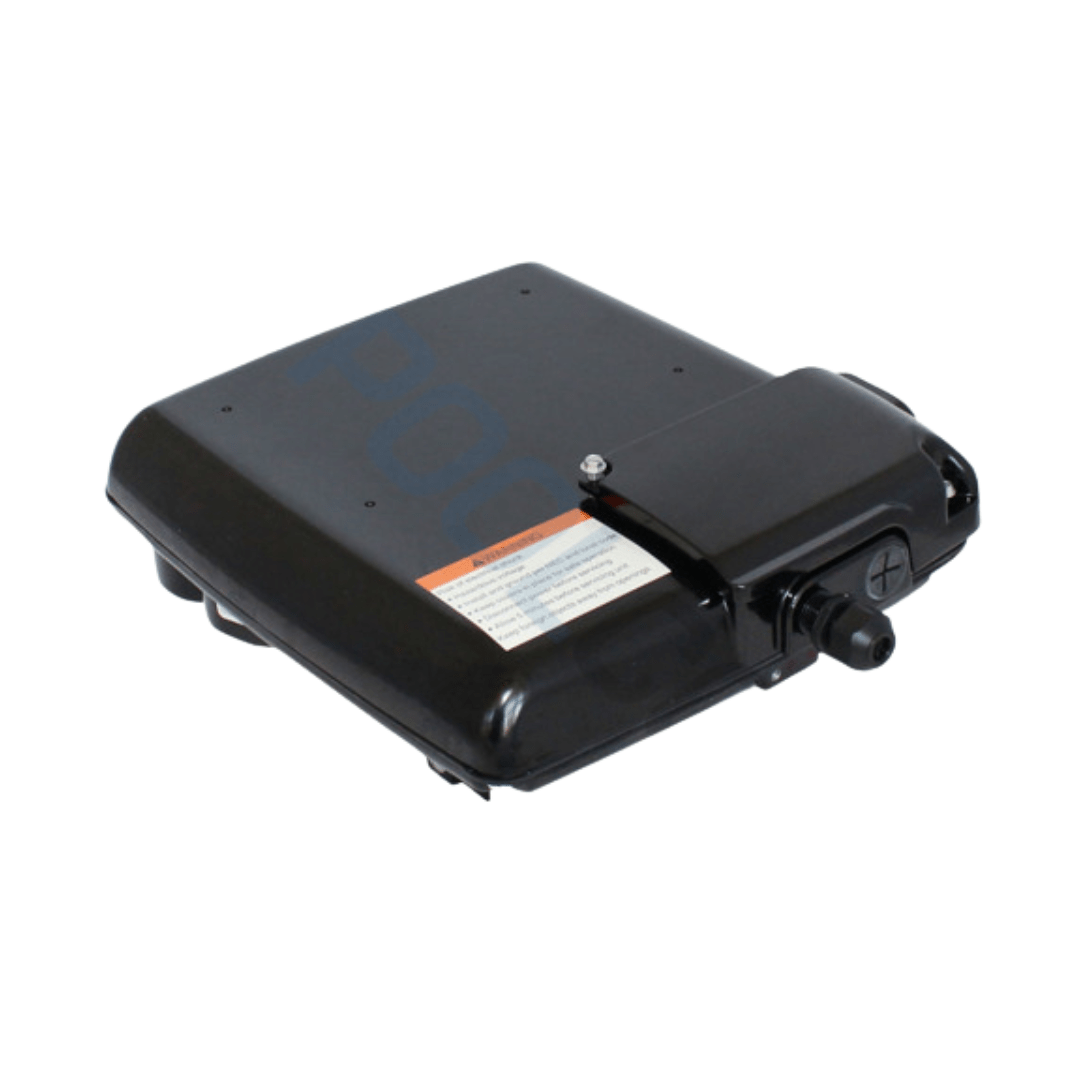

The Jandy R0688600 Variable Speed Drive is the genuine OEM drive module for Jandy Gen-II permanent-magnet variable speed pumps in the 2.2-2.7 HP class. It is the electronics package that sits on top of the motor: it converts incoming single-phase power into the variable-frequency output the motor needs, and it carries the speed control logic, the schedule memory and the keypad.
⚠️ Drive Only — This Is Not a Motor
This part replaces the drive electronics alone. If the motor itself has seized or burned out, you need the complete motor and drive assembly, R0562201, instead. It is also Non-SVRS and Gen-II specific — it will not serve SVRS pump variants or earlier drive generations.
Compatible Pumps
- VS PlusHP: VSPHP270JEP, VSPHP270AUT
- VS FloPro: VS-FHP2.0, VSFHP270JEP, VSFHP270AUT
- ePump: VSSHP220AUT, VSSHP270AUT
When This Is the Part You Need
A failed drive is the most common reason a Jandy variable speed pump stops working while the motor is still perfectly serviceable. Typical symptoms are a pump that will not power up at all, a blank or frozen keypad display, drive fault codes that return after a power cycle, or a pump that hums but never comes up to speed. Replacing the drive is a fraction of the cost of a new pump.
Key Features
- Genuine Jandy OEM: correct control firmware and connector layout for the Gen-II motor.
- Restores full speed control: variable speed operation, on-board scheduling and keypad programming all return with the new drive.
- Component-level repair: replaces the electronics rather than the entire pump.
- Serves three pump families: one drive covers VS PlusHP, VS FloPro and ePump in this horsepower class.
- Gen-II permanent-magnet design: matched to the ECM motor it drives.
Specifications
- Part Number: R0688600
- Type: Variable frequency drive module (drive only)
- Horsepower Class: 2.2-2.7 HP
- Generation: Gen-II
- SVRS: Non-SVRS
- Complete Motor + Drive Assembly: R0562201
- Alternate Part Numbers: TLD-101-7241, JDYR0688600, JNDR0688600
- Brand: Jandy / Zodiac (Genuine OEM)
Frequently Asked Questions
Does this include the motor?
No. This is the drive module only. If your motor has failed, the complete motor and drive assembly is R0562201.
How do I know whether my drive or my motor failed?
A drive fault usually shows as a dead or frozen display, a pump that will not start, or fault codes that persist through a power cycle while the motor spins freely by hand. A failed motor more often shows as a pump that tries to start and trips the breaker, or a shaft that will not turn. A pool professional can confirm with a resistance check across the motor windings.
Will this fit an SVRS pump?
No. This is the Non-SVRS drive. SVRS-equipped pumps use a different drive and the two are not interchangeable.
Will it fit a Gen-I pump?
No. This drive is specific to Gen-II pumps. Check the generation on your pump or motor label before ordering.
Do my saved schedules carry over?
No. The schedules and speed presets live in the drive, so a new drive arrives with factory defaults. Note your speeds and run times before removing the old drive if you can still read them.
Who should install it?
A qualified pool professional or licensed electrician. The pump must be isolated at the breaker before the drive is opened, and permanent-magnet motors can generate voltage while the shaft is turning.
Frequently asked questions
What is the part number for this drive?
Jandy lists this drive under part number R0688600. Quote R0688600 when you cross-reference it against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
How do I confirm this fits my equipment?
Match the part number on the component you are replacing, or look it up in the parts list for your Jandy pump. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Does pump drive work need an electrician?
Pool equipment sits under specific electrical code requirements covering bonding, grounding and GFCI protection. Cut power at the breaker before removing any drive cover, and have a licensed professional handle the supply side.
Is there a warranty on this part?
It carries the standard Jandy manufacturer warranty. The terms are set by Jandy, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
