Jandy R0974400 Variable Speed Pump Drive, 2.7 HP DV2A (Drive Only) — Dual-Voltage 115V/230V, Genuine OEM
Couldn't load pickup availability
Got questions?
Feel free to get in touch

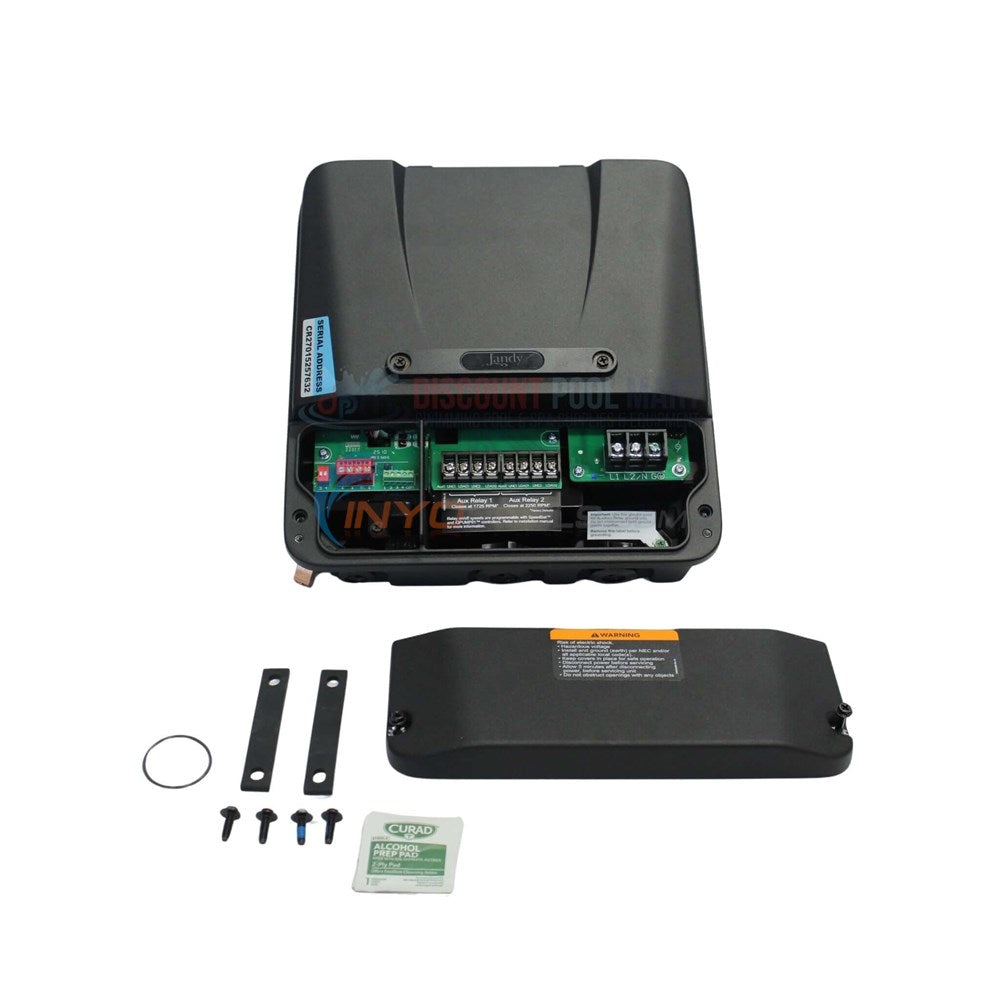

The Jandy R0974400 Variable Speed Drive is the genuine Zodiac/Jandy OEM replacement drive unit for 2.7 HP FloPro and VS-series DV2A variable-speed pumps. When the drive fails but the motor and wet end are still sound, this restores full variable-speed control — programmable RPM, scheduling, and energy-efficient operation — without the cost of a complete new pump.
Key Features
- Genuine Jandy OEM drive: Engineered specifically for the 2.7 HP DV2A pump platform for correct fit and factory performance.
- Restores variable-speed control: Brings back full programmable RPM range for filtration, heating, cleaning, and water features.
- Dual-voltage 115V / 230V: Works across a wide range of residential and commercial electrical configurations.
- Drive only — no controller: Ideal for systems already running a SpeedSet controller or external automation.
- Energy efficient: Precise speed control lowers operating cost and reduces wear versus single-speed operation.
- Rugged, outdoor-rated build: Corrosion-resistant construction for long life in harsh equipment-pad conditions.
Specifications
- Part Number: R0974400
- Type: Variable-speed pump drive (drive only, no controller)
- Motor Rating: 2.7 HP
- Voltage: Dual-voltage 115V / 230V
- Fits: Jandy DV2A 2.7 HP variable-speed pumps — VS FloPro (VSFHP270DV2A), VS PlusHP (VSPHP270DV2A), ePump (VSSHP270DV2A) and S variants
- UPC: 052337290531
- Brand: Jandy / Zodiac — genuine OEM
What's Included / Not Included
- Included: Variable-speed drive unit
- Not included: SpeedSet controller, motor, pump housing, or automation interface
Frequently Asked Questions
What pump does the Jandy R0974400 fit?
The 2.7 HP DV2A variable-speed platform — VS FloPro, VS PlusHP, and ePump models ending in 270DV2A (and their "S" variants). Check the model number on your motor label before ordering.
What's the difference between R0974400 and R0974401?
Horsepower. The R0974400 is the 2.7 HP drive; the R0974401 is the 1.85 HP drive. They are matched to different motors and are not interchangeable — match the drive to your pump's HP rating.
Does this include the controller?
No — this is the drive only. It's intended for systems that already have a SpeedSet controller or run the pump through automation. If you need the full drive-plus-controller assembly, that's a different Jandy part.
Is it 115V or 230V?
Both — it's a dual-voltage unit compatible with 115V and 230V setups, which simplifies installation across most pool systems.
When should I replace the drive instead of the whole pump?
When the drive has failed — erratic RPM, startup faults, error codes, or no power to the motor — but the motor and wet end are still in good condition. Replacing just the drive is far more economical than a complete pump.
Can I install this myself?
This is a high-voltage electrical component and should be installed by a qualified pool professional. Disconnect power first, verify alignment with OEM fasteners, ensure waterproof seals are intact, and reprogram your RPM schedules after installation.
Frequently asked questions
Is a variable speed pump worth it?
Variable speed pumps draw dramatically less power at low speed because energy use falls far faster than flow does. Many jurisdictions now require variable speed for new and replacement residential pool pumps above a certain horsepower, so check local code before buying single-speed.
What is the part number for this pump?
Jandy lists this pump under part number R0974400. Quote R0974400 when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
How do I match a pump to my pool?
Work from the plumbing rather than the pool size: line diameter, total dynamic head and the flow your filter and heater can accept all cap the useful pump size. An oversized pump on undersized plumbing wastes power and can exceed the filter's rated flow.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Jandy equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
What do I need to check before installing this pump?
Confirm the voltage, the union or port sizes and the mounting footprint against your existing installation. Pump replacement usually involves electrical connections and may require a licensed electrician depending on local requirements.
Is there a warranty on this pump?
It carries the standard Jandy manufacturer warranty. The terms are set by Jandy, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
