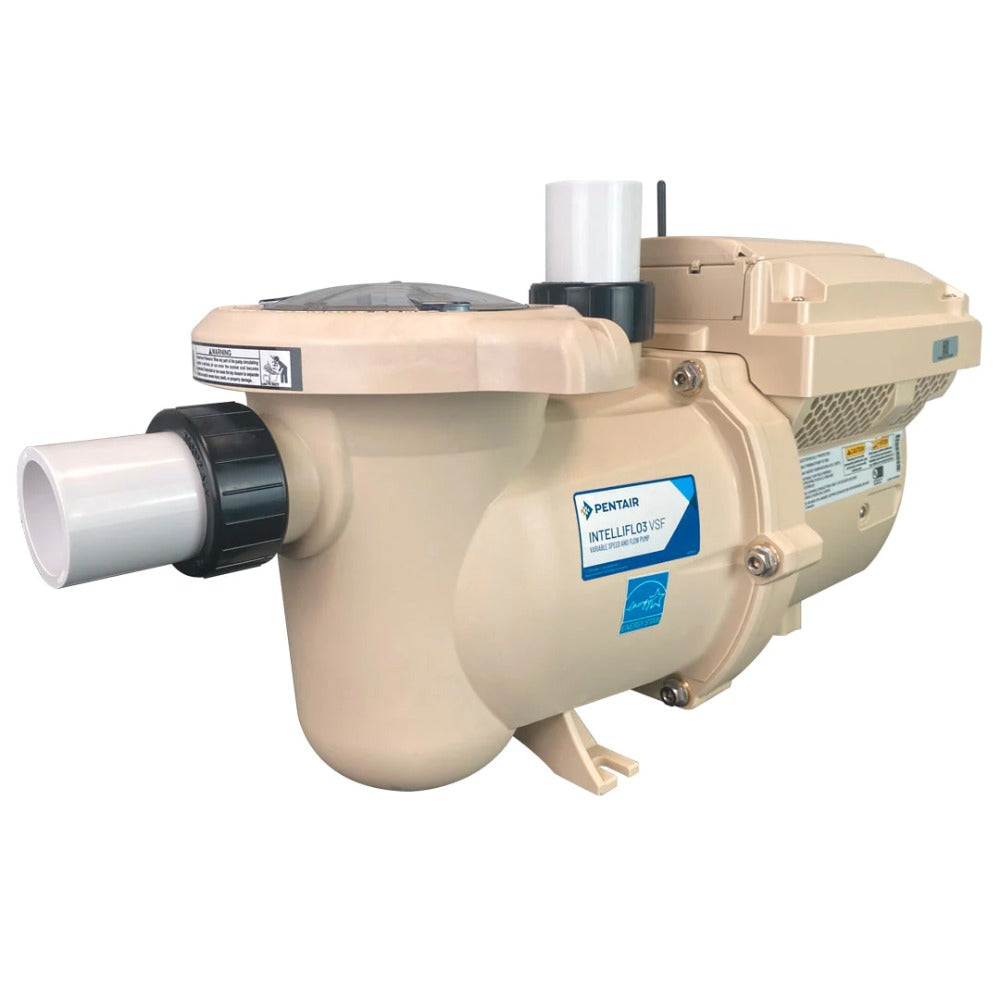

Pentair 011065 IntelliFlo3 VSF Variable Speed & Flow Pool Pump — 1.5 THP, 115/208-230V, WiFi, ENERGY STAR
Couldn't load pickup availability
Got questions?
Feel free to get in touch
The Pentair 011065 IntelliFlo3 VSF Variable Speed and Flow Pool Pump is Pentair's flagship 1.5 THP pump, combining variable speed control with proprietary sensorless flow technology. Rather than simply running at a set RPM, it senses and maintains your pool's optimal flow rate automatically — adjusting for a dirty filter, a closed valve, or changing conditions without any input from you.
Key Features
- Sensorless flow technology: Maintains optimum flow automatically as pool conditions change.
- Up to 90% energy savings: Slower speeds and regulated flow dramatically cut running costs versus a single-speed pump.
- Built-in WiFi and Bluetooth: Control from the Pentair Home app anywhere, or add the optional colour-matched touchscreen (356159Z for almond IntelliFlo3 pumps).
- Connects two more devices: The only pump with WiFi-enabled automation that can link two additional Pentair products.
- Quiet operation: Substantially quieter than a single-speed pump at the equipment pad.
- DOE compliant and ENERGY STAR certified: Meets current federal efficiency standards.
- Flexible plumbing: 2" unions included, with adapters for 1.5" installations.
- WEF 9.4: High water energy factor rating.
Specifications
- Part Number: 011065
- Type: Variable speed and flow in-ground pool pump
- Total Horsepower: 1.5 THP
- Voltage: 115 / 208-230V
- Full Load Amps: 12 / 6.4-5.9
- Frequency: 50/60 Hz
- Port Size: 1.5" x 1.5" or 2" x 2" NPT
- WEF: 9.4
- Weight: 48 lbs
- Certifications: UL, NSF, ENERGY STAR
- UPC: 788379886127
- Brand: Pentair (Genuine OEM)
Frequently Asked Questions
What does "VSF" mean, and how is it different from a plain variable speed pump?
VSF stands for Variable Speed and Flow. A standard variable speed pump holds a fixed RPM you program. A VSF pump targets a fixed flow rate and adjusts RPM automatically to hit it, compensating for filter loading and system changes.
Does it include the touchscreen?
No. The 011065 does not include the I/O board or touchscreen. The universal touchscreen add-on is sold separately and is colour-matched to the pump: 356159Z (almond) is the version for IntelliFlo3 pumps such as this one. The 356348Z is the black version, intended for black IntelliPro3 pumps — it will function, but the finish will not match an almond pump.
Will this work with 1.5" plumbing?
Yes. It ships with 2" unions plus adapters for 1.5" plumbing.
Is it California compliant?
Yes. As a variable speed pump it meets California Title 20 requirements for residential pool filtration, unlike single-speed pumps of 1.0 THP or greater.
Do I need automation to use it?
No. It works standalone via the Pentair Home app over WiFi or Bluetooth, though it also integrates with Pentair automation systems.
Is professional installation required?
Yes — installation by a qualified pool professional is required to validate manufacturer warranty coverage, and electrical work should be done by a licensed electrician.
