Pentair 356162Z IntelliFlo3 VSF Drive and Drive Hardware Kit — 1.5 HP, Fits IntelliFlo3 & IntelliPro3 — Genuine OEM
Couldn't load pickup availability
Got questions?
Feel free to get in touch
The Pentair 356162Z Drive and Drive Hardware Kit is the genuine OEM variable speed drive for the IntelliFlo3 VSF and IntelliPro3 VSF 1.5 HP pool pumps. It ships as a complete kit with the drive body, mounting gasket, screws and Pentair's installation instructions, so a failed drive can be replaced without sourcing hardware separately.
⚠️ 1.5 HP Only
This drive fits 1.5 HP IntelliFlo3 and IntelliPro3 pumps. The 3.0 HP pumps use 356163Z. The two are not interchangeable — check the horsepower on your pump label before ordering.

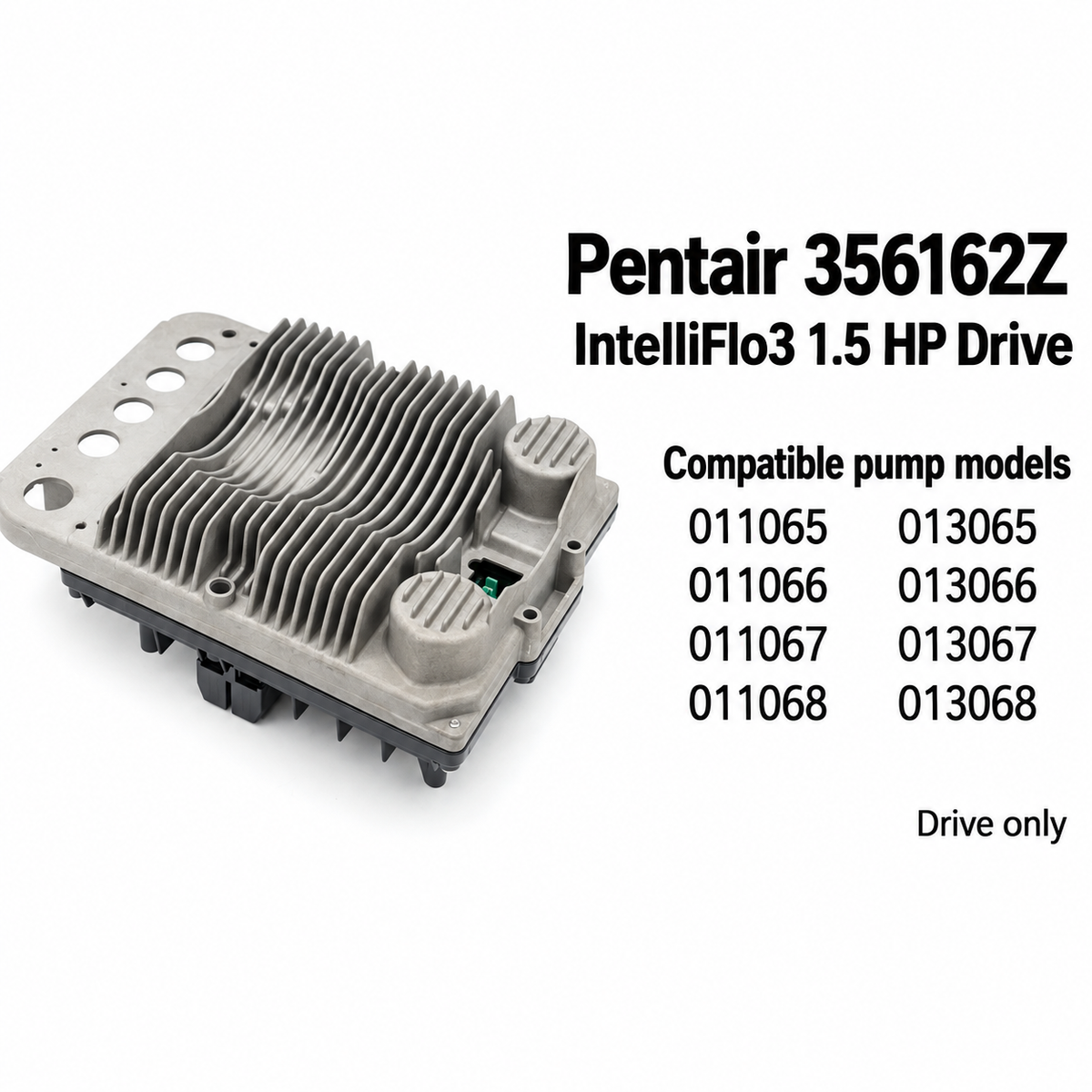

Compatible Pump Models
- IntelliFlo3 VSF (almond): 011065, 011066, 011067, 011068
- IntelliPro3 VSF (black): 013065, 013066, 013067, 013068

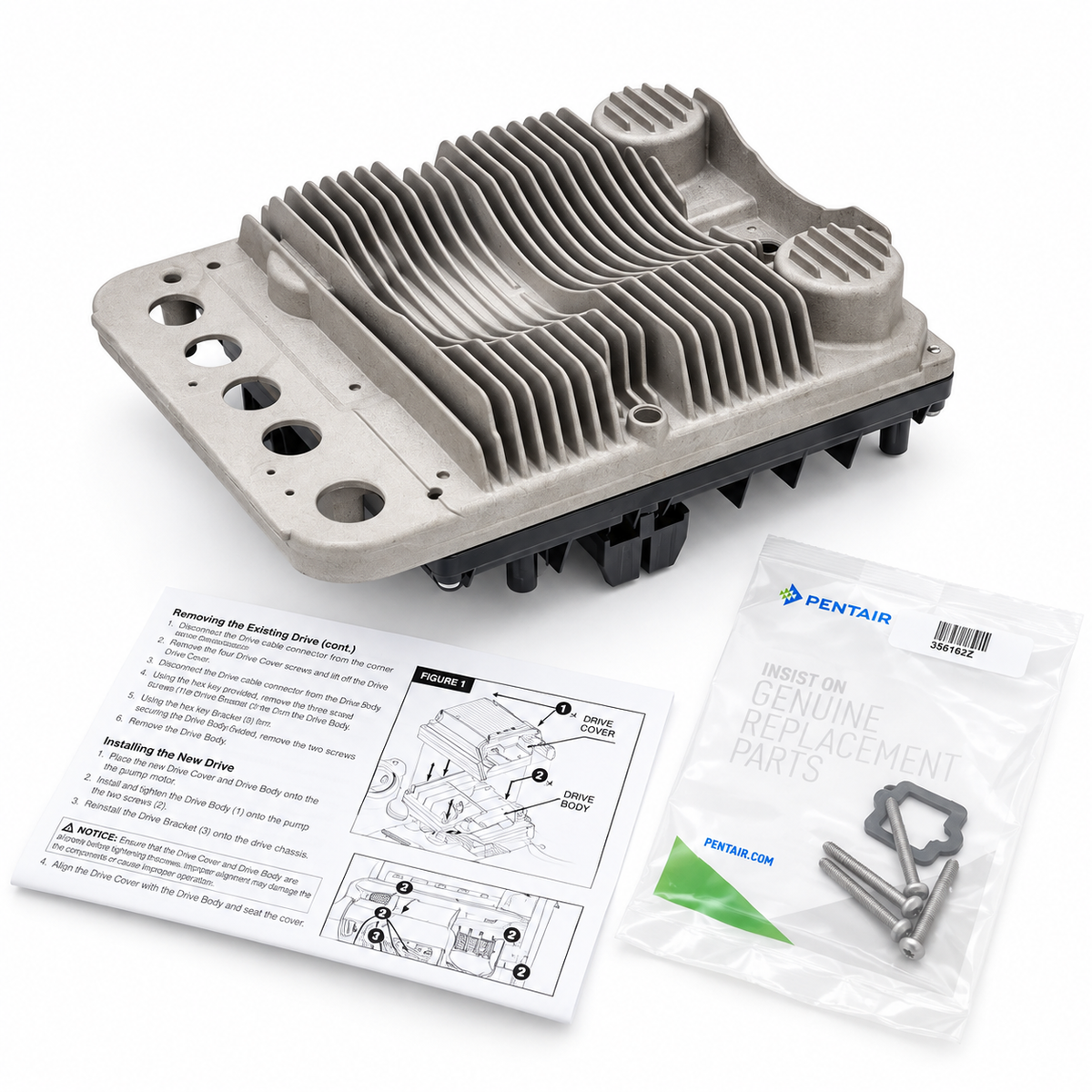

What's Included
- Drive body and drive cover assembly
- Drive mounting gasket
- Four mounting screws
- Pentair installation instruction sheet
Key Features
- Genuine Pentair OEM: correct firmware and connector configuration for the IntelliFlo3 platform.
- Complete kit: gasket, screws and instructions included — no separate hardware order needed.

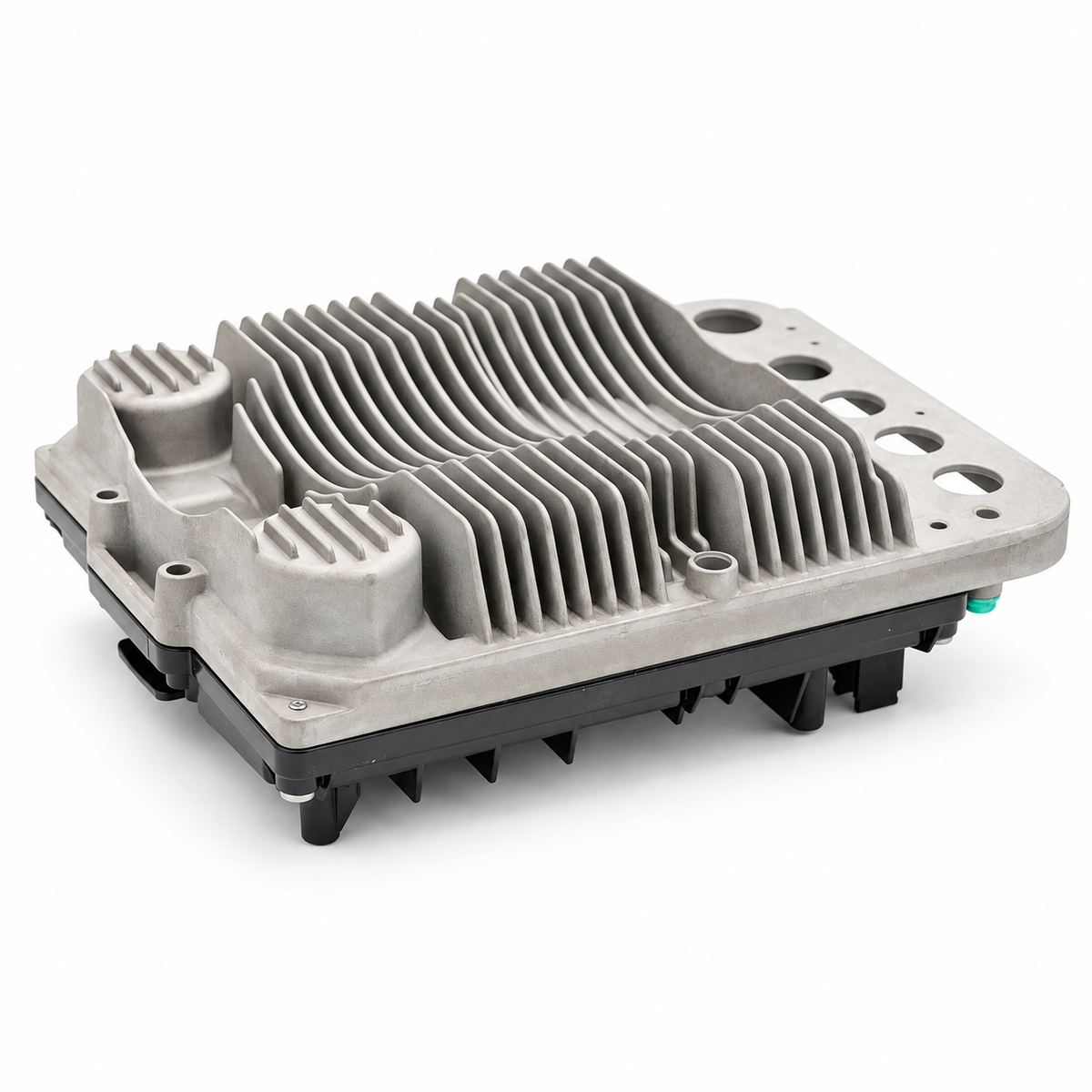

- Cast aluminium heat sink: the finned housing dissipates drive heat for reliable operation at the equipment pad.
- Restores full VSF control: returns variable speed and flow programming, scheduling and automation communication.
- Component-level repair: replaces the drive alone rather than the entire pump, at a fraction of the cost.
- Fits both colours: the same drive serves almond IntelliFlo3 and black IntelliPro3 pumps.
Specifications
- Part Number: 356162Z
- Type: Variable speed drive and drive hardware kit
- Horsepower: 1.5 HP
- Series: IntelliFlo3 VSF / IntelliPro3 VSF
- Diagram Reference: Item 11
- 3.0 HP Equivalent: 356163Z
- Brand: Pentair (Genuine OEM)
Frequently Asked Questions
Will this fit my 3 HP IntelliFlo3?
No. The 3.0 HP pump requires 356163Z. Confirm the horsepower on your pump's data label before ordering.
Does it fit IntelliPro3 as well as IntelliFlo3?
Yes. The 1.5 HP IntelliFlo3 (011065, 011066, 011067, 011068) and IntelliPro3 (013065, 013066, 013067, 013068) share this drive. The pumps differ in cabinet colour and sales channel, not in the drive.
Is the hardware included?
Yes — the mounting gasket, four screws and Pentair's installation instructions all ship with the drive.
Is the motor included?
No. This is the drive only. The 1.5 HP motor kit is 356164S, and the drive top cover is 356214Z.
What are the symptoms of a failed drive?
A pump that will not power up, a blank or frozen display, error codes that persist after a power cycle, or a pump that runs but ignores speed commands. Rule out the power supply and any automation connection first.
Do I need a hex key?
Pentair's instructions call for a hex key to remove the three screws securing the existing drive body. One is supplied with the pump; check your toolkit before starting.
Who should install it?
A qualified pool professional or licensed electrician. The pump must be isolated at the breaker before the drive cover is removed.
Frequently asked questions
What is the part number for this drive?
Pentair lists this drive under part number 356162Z. Quote 356162Z when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Pentair equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Does pump drive work need an electrician?
Pool equipment sits under specific electrical code requirements covering bonding, grounding and GFCI protection. Cut power at the breaker before removing any drive cover, and have a licensed professional handle the supply side.
Is there a warranty on this part?
It carries the standard Pentair manufacturer warranty. The terms are set by Pentair, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
