Pentair 356324Z SuperFlo VS 25 ft Automation Cable Wiring Kit — RS-485 for IntelliCenter, EasyTouch, AquaLink, Genuine OEM
Couldn't load pickup availability
Got questions?
Feel free to get in touch

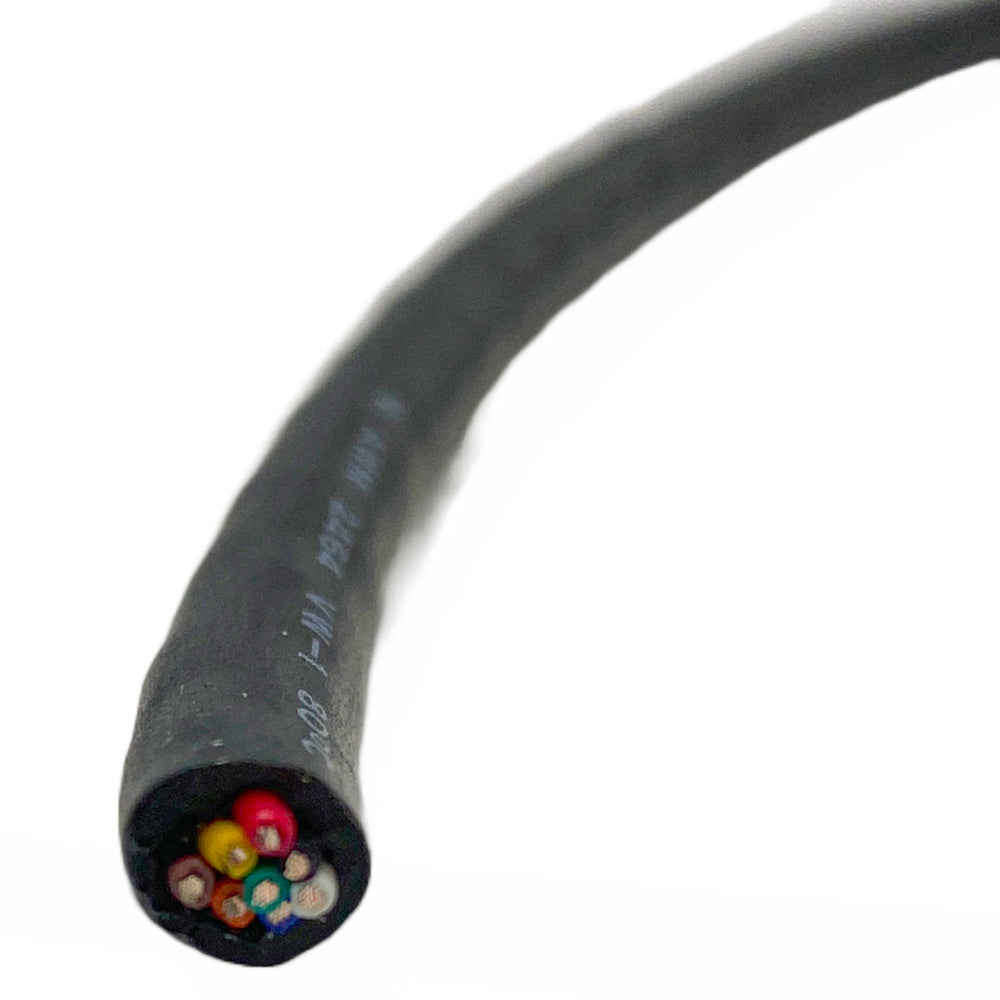

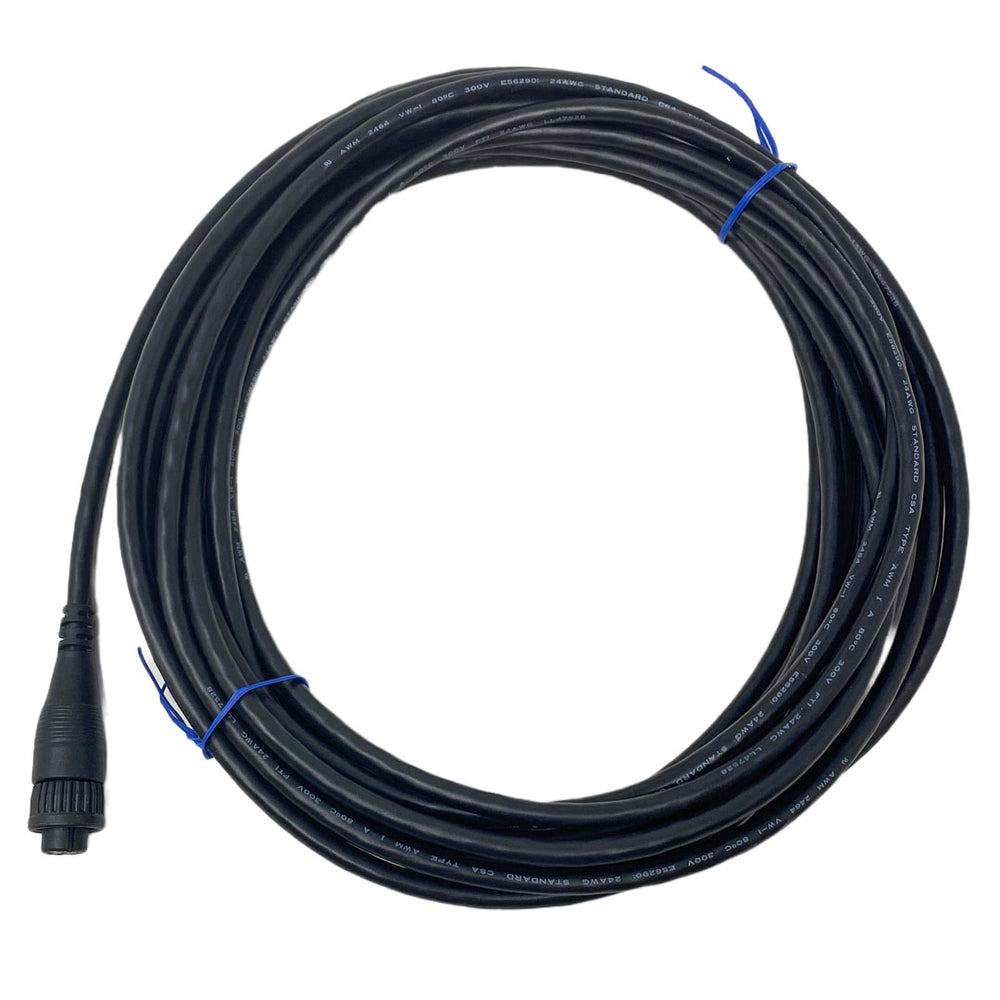

The Pentair 356324Z Automation Cable Wiring Kit is a genuine OEM 25 ft RS-485 communication cable that connects SuperFlo VS/VST, SuperMax VS, WhisperFlo VST, WhisperFloXF VS, and Max-E-ProXF VS pumps (built after October 2020) to a pool automation system. It lets your automation control the pump's speeds and schedules over a single reliable digital link.
Key Features
- Genuine Pentair OEM: Correct RS-485 wiring and Mini-Con-X connector for dependable pump-to-automation communication.
- 25 ft length: Reaches from the pump to the control panel without extensions.
- Broad pump compatibility: SuperFlo VS/VST, SuperMax VS, WhisperFlo VST, WhisperFloXF VS, Max-E-ProXF VS (post-Oct 2020).
- Works with major automation: Pentair IntelliCenter, EasyTouch, IntelliTouch, and Jandy AquaLink systems.
- Weather-resistant: Insulation built to resist heat, moisture, and UV on the equipment pad.
- Supersedes 353129Z: The current-revision replacement cable.
Specifications
- Part Number: 356324Z
- Type: RS-485 automation / digital input cable
- Length: 25 ft

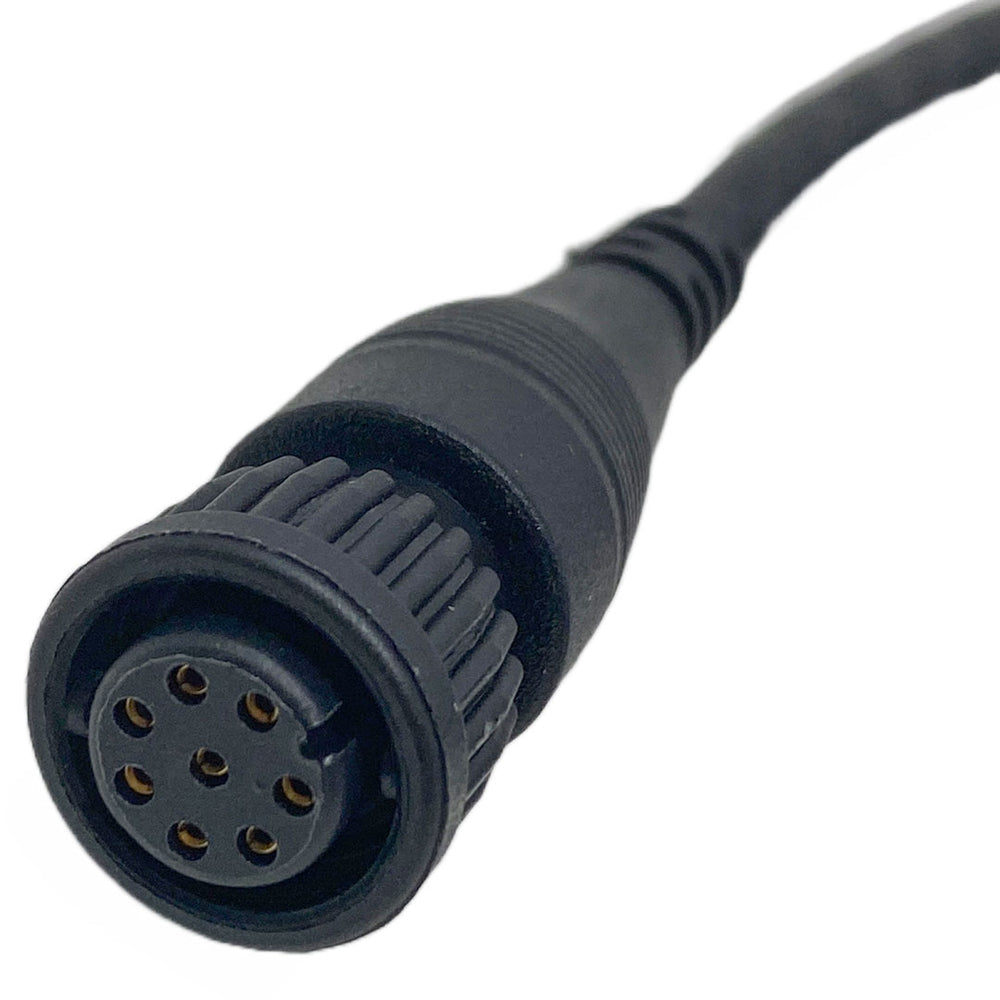

- Connector: Mini-Con-X
- Supersedes: 353129Z
- UPC: 788379501204
- Brand: Pentair — genuine OEM
Frequently Asked Questions
Which pumps does the 356324Z work with?
Pentair SuperFlo VS/VST, SuperMax VS, WhisperFlo VST, WhisperFloXF VS, and Max-E-ProXF VS pumps manufactured after October 2020. Confirm your pump's model and build date before ordering.
What automation systems does it connect to?
It links the pump to Pentair IntelliCenter, EasyTouch, and IntelliTouch, as well as Jandy AquaLink systems, over RS-485.
How long is the cable?
25 feet — enough to route from the pump to most equipment-pad control panels without an extension.
Does this replace an older cable?
Yes — it supersedes part 353129Z as the current revision.
What does it actually do?
It carries the digital control signal so your automation system can start, stop, and set the speeds of a compatible variable-speed pump, instead of programming the pump manually at its keypad.
Is professional installation required?
Wiring to automation is best handled by a qualified pool professional. Disconnect power before connecting, and label each end of the cable to simplify future service.
Frequently asked questions
What can this automation system control?
Pool and spa automation of this type manages pump speeds, heater setpoints, valve actuators, lighting and sanitiser output from a single interface. The exact relay count and the number of supported bodies of water are set by the model and personality kit, listed in the specification section above.
What is the part number for this automation system?
Pentair lists this automation system under part number 356324Z. Quote 356324Z when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
Do I need a professional to install it?
Yes. This equipment is wired into your pool's electrical supply and, in most jurisdictions, must be installed by a licensed electrician or pool professional. Manufacturer warranty coverage on automation equipment commonly depends on professional installation.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Pentair equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Can I add valve actuators, a salt cell or extra relays later?
Most systems of this type are designed to expand, but the ceiling depends on the model and the personality kit installed. Confirm what is in the box on this page before assuming an accessory is included - actuators, transformers and salt cells are frequently sold separately.
Is there a warranty on this automation system?
It carries the standard Pentair manufacturer warranty. The terms are set by Pentair, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
