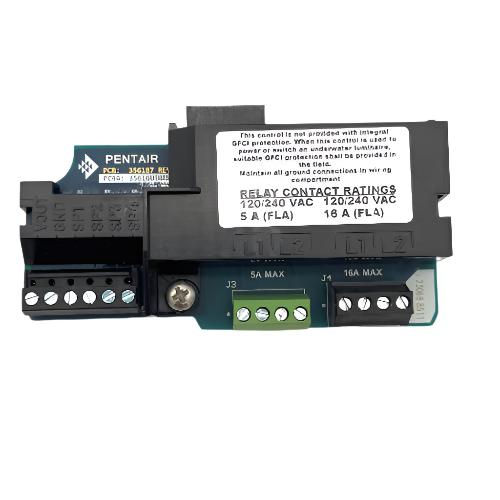

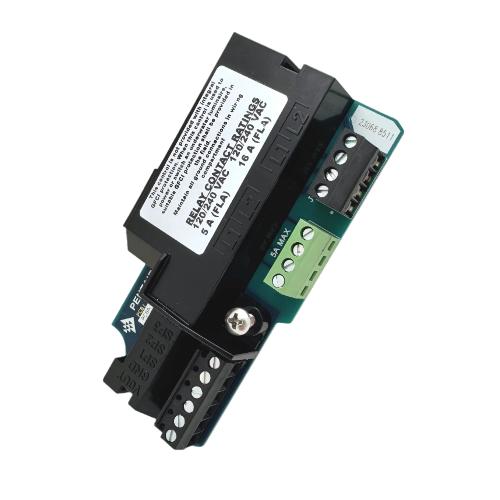

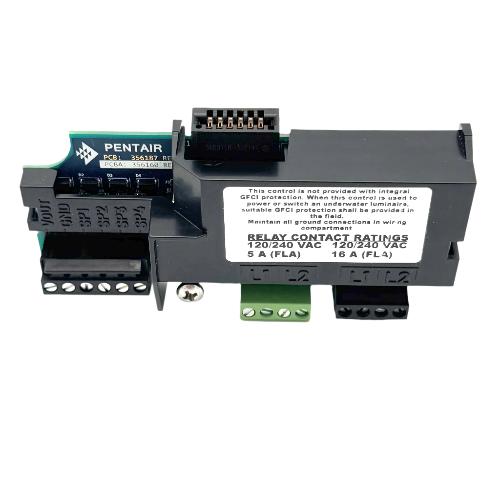

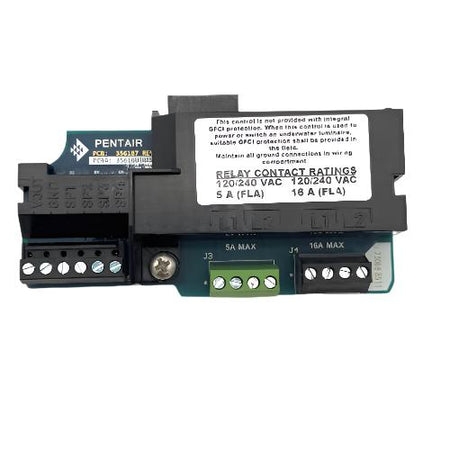

Pentair 356365Z. Relay Control Board Kit – For IntelliFlo3 And IntelliPro3 VSF Pool Pumps.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Replace your IntelliFlo3 VSF Pool Pump's relay control board with the Pentair 356365Z kit. This genuine Pentair replacement part ensures reliable operation and seamless integration with your pool's automation system.
Key Features:
-
Compatibility: Designed for Pentair IntelliFlo3 VSF and IntelliPro3 VSF pool pumps.
-
Functionality: Enables remote control of the pump via digital input connections.
-
Voltage Ratings: Relay contact ratings of 120/240 VAC, 5A (FLA) and 120/240 VAC, 16A (FLA).
-
Durability: Constructed with high-quality materials for long-term use in poolside conditions.
-
Easy Installation: Simplifies pool automation, enhancing control over your pool's systems.
Product Overview:
The Pentair 356365Z Relay Control Board Kit is an essential component for enhancing the performance and functionality of your IntelliFlo3 VSF pool pump. This relay board kit enables seamless control of additional pool equipment, such as heaters or lights, integrating them into the IntelliFlo3 system for streamlined operation. Built for durability, the relay board is designed to withstand exposure to water and harsh poolside conditions. Easy to install, it simplifies pool automation, giving you greater control over your pool’s auxiliary systems.
Frequently asked questions
How do I know the board has failed?
Typical symptoms are a dead display, relays that will not latch, erratic scheduling, or a system that resets on its own. Before replacing a board, rule out the transformer, the incoming supply voltage and any blown fuses, since those faults present the same way.
What is the part number for this control board?
Pentair lists this control board under part number 356365Z. Quote 356365Z when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
Do I need the exact revision of this board?
Yes. Boards in the same family are often not interchangeable across revisions because the firmware, connector layout and relay count change. Match the number printed on your existing board rather than the model name on the equipment housing.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Pentair equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Should an electrician install this?
Replacing a control board means working inside an energised enclosure. Cut power at the breaker first, and if you are not comfortable identifying line and load connections, have a pool professional or electrician do the swap.
Is there a warranty on this control board?
It carries the standard Pentair manufacturer warranty. The terms are set by Pentair, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
