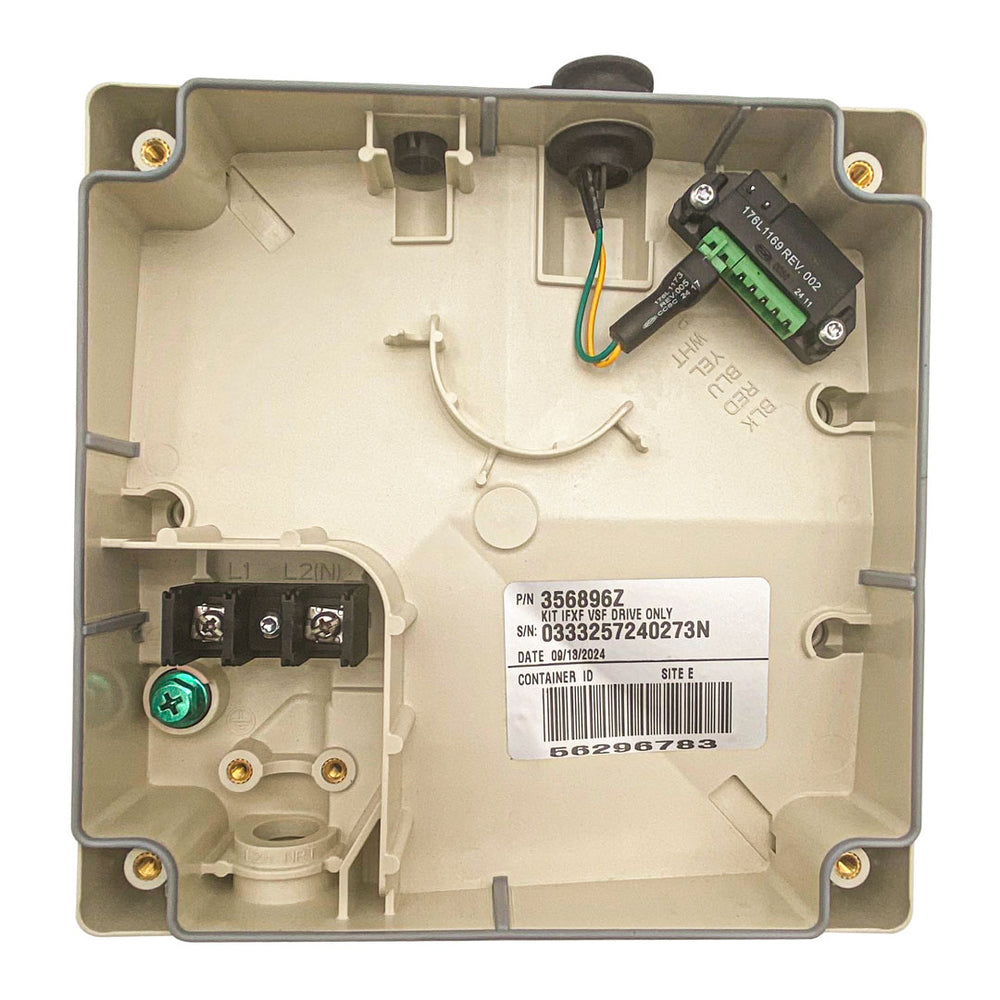

Pentair 356896Z IntelliFloXF VSF Variable Speed Drive Kit (022056) — Genuine OEM
Couldn't load pickup availability
Got questions?
Feel free to get in touch
The Pentair 356896Z Drive Kit is the genuine OEM variable-speed drive for the IntelliFloXF VSF (Variable Speed/Flow) pump, model 022056. When the drive fails but the motor and wet end are still sound, this restores full programmable speed and flow control without the cost of a complete new pump.
Key Features
- Genuine Pentair OEM drive: Engineered specifically for the IntelliFloXF VSF platform.
- Restores speed & flow control: Full programmable RPM and flow range for large-flow applications.
- Companion keypad 357527Z: Pairs with the standard IntelliFlo keypad.
- RS-485 automation ready: Works with IntelliCenter, IntelliTouch, and EasyTouch systems.
- Energy efficient: Variable-speed control significantly lowers operating cost.
- Cost-effective repair: Far cheaper than replacing the whole high-flow XF pump.
Specifications
- Part Number: 356896Z
- Type: Variable-speed drive kit
- Fits: Pentair IntelliFloXF VSF (022056)
- Companion Keypad: 357527Z
- Brand: Pentair — genuine OEM
Frequently Asked Questions
Which pump does the Pentair 356896Z fit?
The IntelliFloXF VSF (Variable Speed/Flow) pump, model 022056 — the high-flow XF platform. Confirm your pump model on the housing label before ordering.
How is this different from the 356878Z or 356879Z?
Those drives cover the standard IntelliFlo and IntelliFloXF VS pumps. The 356896Z is specific to the IntelliFloXF VSF (022056) — the variable speed/flow version of the XF. Match the drive to your exact XF model and whether it's VS or VSF.
Does it include a keypad?
Pair it with keypad 357527Z if you need a new keypad; if your existing keypad works, you can reuse it. Confirm the kit contents on the packaging for your specific order.
Will it work with my automation?
Yes — it's RS-485 ready and compatible with Pentair IntelliCenter, IntelliTouch, and EasyTouch systems.
Should I replace the drive or the whole pump?
If the drive has failed but the motor and wet end are still good, replacing just the drive is far more economical than a complete IntelliFloXF pump.
Does it need professional installation?
Yes — it's a high-voltage component. Disconnect power at the breaker, have a qualified professional install it, and reprogram RPM/flow schedules afterward.
Frequently asked questions
Is a variable speed pump worth it?
Variable speed pumps draw dramatically less power at low speed because energy use falls far faster than flow does. Many jurisdictions now require variable speed for new and replacement residential pool pumps above a certain horsepower, so check local code before buying single-speed.
What is the part number for this pump?
Pentair lists this pump under part number 356896Z. Quote 356896Z when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
How do I match a pump to my pool?
Work from the plumbing rather than the pool size: line diameter, total dynamic head and the flow your filter and heater can accept all cap the useful pump size. An oversized pump on undersized plumbing wastes power and can exceed the filter's rated flow.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Pentair equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
What do I need to check before installing this pump?
Confirm the voltage, the union or port sizes and the mounting footprint against your existing installation. Pump replacement usually involves electrical connections and may require a licensed electrician depending on local requirements.
Is there a warranty on this pump?
It carries the standard Pentair manufacturer warranty. The terms are set by Pentair, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
