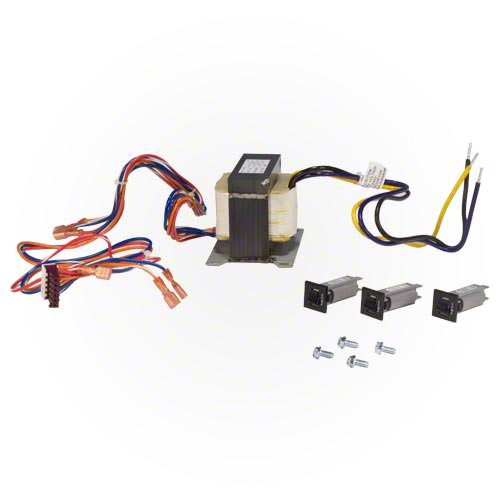

Pentair 521233 Load Center System Transformer — EasyTouch & IntelliTouch, Genuine OEM
Couldn't load pickup availability
Got questions?
Feel free to get in touch
The Pentair 521233 Load Center System Transformer supplies the low-voltage power that runs the control board, display and accessories inside a Pentair load centre. This is the later revision, fitting load centres built after Pentair's design change date. A failed transformer typically shows up as a completely dead panel.
Key Features
- Genuine Pentair OEM transformer: Correct voltage and mounting for the current load centre design.
- Post-change-date fitment: Matches the revised load centre layout.
- Restores panel power: Addresses a dead control board, blank display or non-responsive system.
- Component-level repair: Replaces just the transformer rather than the whole load centre.
- Direct mounting: Fits the existing bracket and harness connections.
- Broad application: Used across EasyTouch and IntelliTouch load centres.
Specifications
- Part Number: 521233
- Type: Load centre system transformer
- Revision: After change date
- Compatible With: Pentair EasyTouch and IntelliTouch load centres
- Supplied As: Transformer only — no enclosure or panel
- Brand: Pentair (Genuine OEM)
Frequently Asked Questions
How do I know if I need the before or after change-date version?
Match the part number printed on your existing transformer. The earlier version is 520722; this 521233 fits load centres built after the revision. Getting this wrong means a part that will not mount or connect correctly.
What are the symptoms of a failed transformer?
Usually a completely dead panel — no display, no relay operation, nothing responding — after you have ruled out breakers and incoming supply.
Is the enclosure included?
No. This is the transformer only.
Will this fix an IntelliChlor that has stopped working?
Possibly, if the whole panel is dead. If only the salt system is affected, look at 520722 or the SCG board instead.
Does it come with mounting hardware?
It is designed to fit the existing bracket and harness in your load centre.
Can I replace it myself?
No. Load centres carry line voltage and this work should be done by a licensed electrician or qualified pool technician.
Frequently asked questions
What can this automation system control?
Pool and spa automation of this type manages pump speeds, heater setpoints, valve actuators, lighting and sanitiser output from a single interface. The exact relay count and the number of supported bodies of water are set by the model and personality kit, listed in the specification section above.
What is the part number for this automation system?
Pentair lists this automation system under part number 521233. Quote 521233 when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
Do I need a professional to install it?
Yes. This equipment is wired into your pool's electrical supply and, in most jurisdictions, must be installed by a licensed electrician or pool professional. Manufacturer warranty coverage on automation equipment commonly depends on professional installation.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Pentair equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Can I add valve actuators, a salt cell or extra relays later?
Most systems of this type are designed to expand, but the ceiling depends on the model and the personality kit installed. Confirm what is in the box on this page before assuming an accessory is included - actuators, transformers and salt cells are frequently sold separately.
Is there a warranty on this automation system?
It carries the standard Pentair manufacturer warranty. The terms are set by Pentair, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
