Pentair 522102Z IntelliCenter System Transformer — Genuine OEM Replacement
Couldn't load pickup availability
Got questions?
Feel free to get in touch
The Pentair 522102Z System Transformer is the genuine OEM transformer for Pentair IntelliCenter control systems. It supplies the low-voltage power the control board and connected automation components depend on. A failed transformer usually presents as a completely dead panel — no display, no relay operation, nothing responding.
Key Features
- Genuine Pentair OEM part: Listed in Pentair's IntelliCenter replacement parts sheet as the System Transformer.

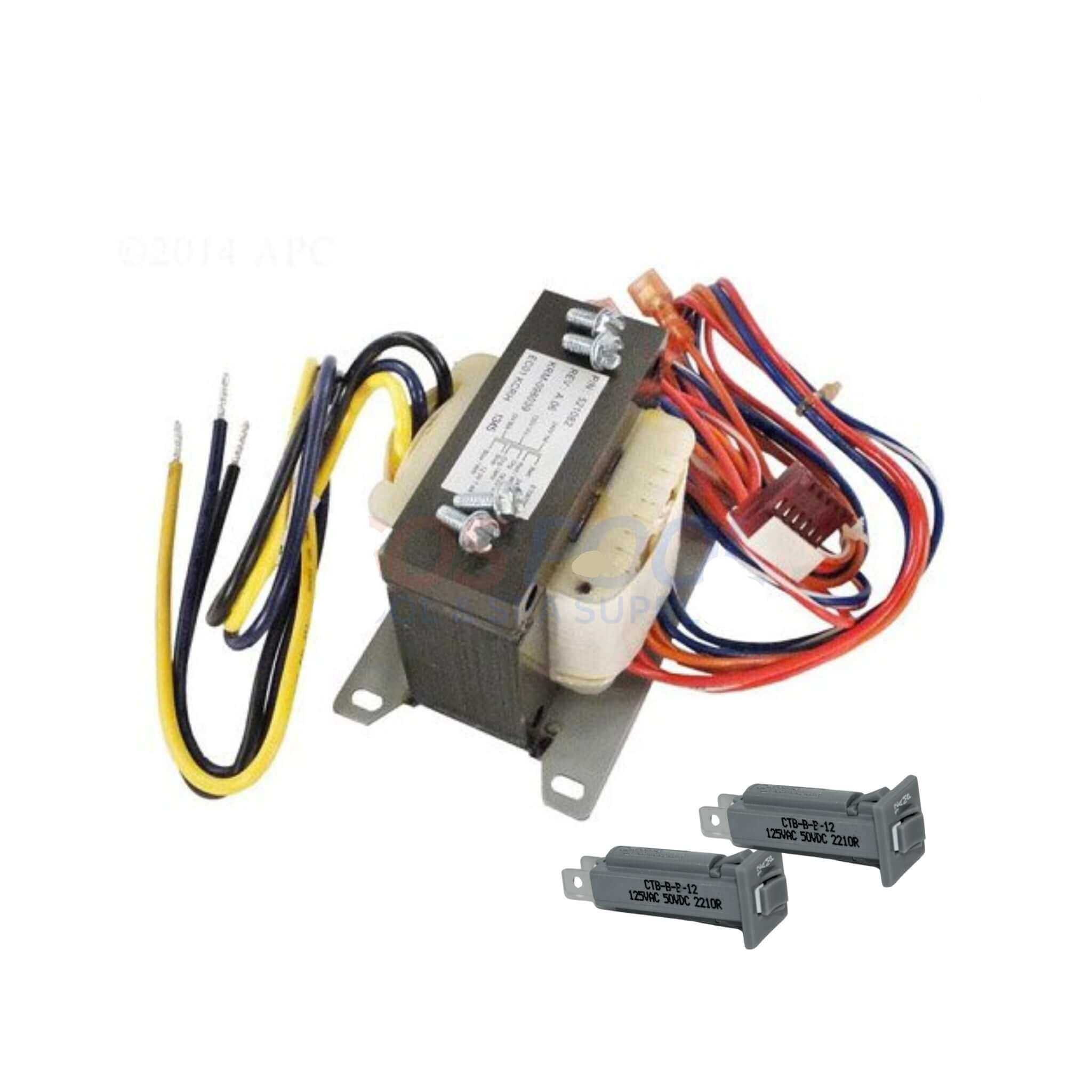

- Complete kit: Ships with the transformer, two circuit breakers and four mounting screws.
- Restores panel power: Addresses a dead control board, blank display or unresponsive automation.
- Component-level repair: Replaces the transformer alone rather than the whole control assembly.
- Supports full system load: Maintains power to lighting, pumps, heating and water-feature control.
Specifications
- Part Number: 522102Z
- Type: System transformer
- Compatible With: Pentair IntelliCenter control systems
- Includes: (1) transformer, (2) circuit breakers, (4) screws
- Supplied As: Transformer kit only — no enclosure or control board
- Brand: Pentair (Genuine OEM)
Frequently Asked Questions
Does this fit IntelliTouch or EasyTouch systems?
No. The 522102Z is the IntelliCenter system transformer. Many listings elsewhere describe it as a replacement for IntelliTouch models, but Pentair's own parts documentation places it under IntelliCenter. For legacy system upgrades to IntelliCenter, Pentair specifies a different part — the 522062Z Legacy Transformer (24VAC/18VAC).
How is this different from 520722 and 521233?
Different systems entirely. The 520722 powers the IntelliChlor salt system; the 521233 is the Load Center transformer for post-2011 EasyTouch and IntelliTouch systems; the 522102Z serves IntelliCenter. They are not interchangeable — match the part number on your existing unit before ordering.
What are the symptoms of a failed transformer?
Typically a completely dead panel, once breakers and incoming supply have been ruled out. A failing transformer can take out every automation function at once.
Is the enclosure or control board included?
No. This is the transformer kit only.
Can I install it myself?
No. Automation enclosures carry line voltage. Installation should be carried out by a licensed electrician or qualified pool technician.
