Pentair Compool PC-LX220 Replacement Circuit Board 10809C – Compatible with LX220 Systems
Couldn't load pickup availability
Got questions?
Feel free to get in touch

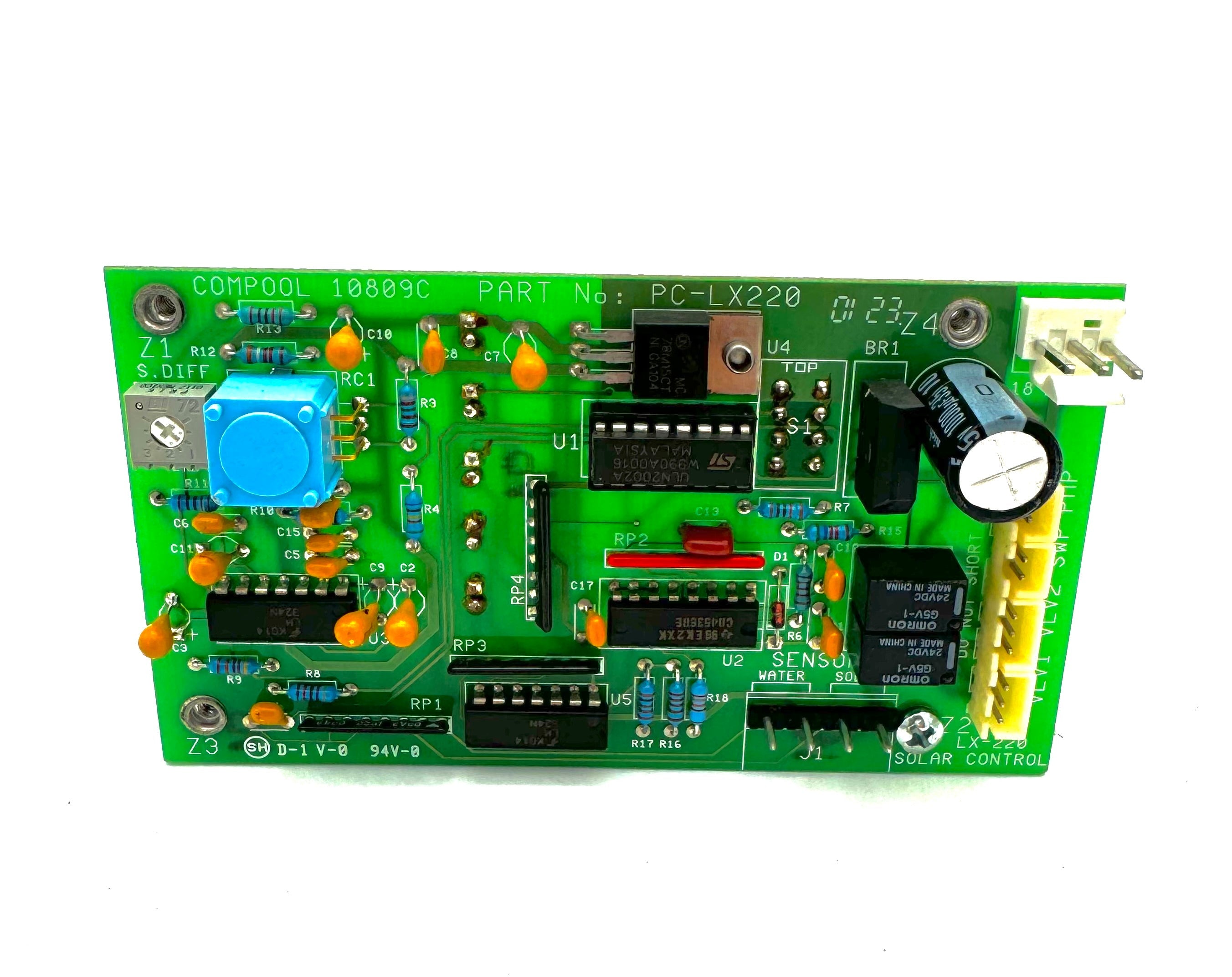

The Pentair 10809C Compool PC‑LX220 Replacement Circuit Board is a direct, OEM‑quality electronic control board designed to restore full functionality to Pentair Compool LX220 pool and spa systems. When your original control board fails, malfunctions, or becomes unresponsive, this replacement board delivers precise electrical management and reliable operation for pumps, heaters, lights, and other connected devices.
Engineered to match the specifications of the original LX220 controller, the 10809C replacement board ensures stable performance, accurate timing, and effective command execution—helping your pool automation run as intended. Installation is straightforward for technicians familiar with Pentair control components, and the board’s robust design ensures long‑lasting reliability.
Pentair 10809C Compool PC‑LX220 Replacement Circuit Board Compatibility
-
Designed specifically for Pentair Compool LX220 pool automation systems.
-
Compatible with original LX220 wiring harnesses and peripherals.
-
Works with Pentair‑branded pumps, heaters, lights, actuators, and other LX220‑connected equipment.
-
Ideal direct replacement for failed or malfunctioning LX220 control boards.
-
Retrofit‑ready for standard Compool LX220 installations without system redesign.
Frequently asked questions
How do I know the board has failed?
Typical symptoms are a dead display, relays that will not latch, erratic scheduling, or a system that resets on its own. Before replacing a board, rule out the transformer, the incoming supply voltage and any blown fuses, since those faults present the same way.
What is the part number for this control board?
Pentair lists this control board under part number PC-LX220. Quote PC-LX220 when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
Do I need the exact revision of this board?
Yes. Boards in the same family are often not interchangeable across revisions because the firmware, connector layout and relay count change. Match the number printed on your existing board rather than the model name on the equipment housing.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Pentair equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Should an electrician install this?
Replacing a control board means working inside an energised enclosure. Cut power at the breaker first, and if you are not comfortable identifying line and load connections, have a pool professional or electrician do the swap.
Is there a warranty on this control board?
It carries the standard Pentair manufacturer warranty. The terms are set by Pentair, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
