Pentair MasterTemp Max-E-Thermostat Control Board w/ 6 Button Pad | 461105
Couldn't load pickup availability
Got questions?
Feel free to get in touch

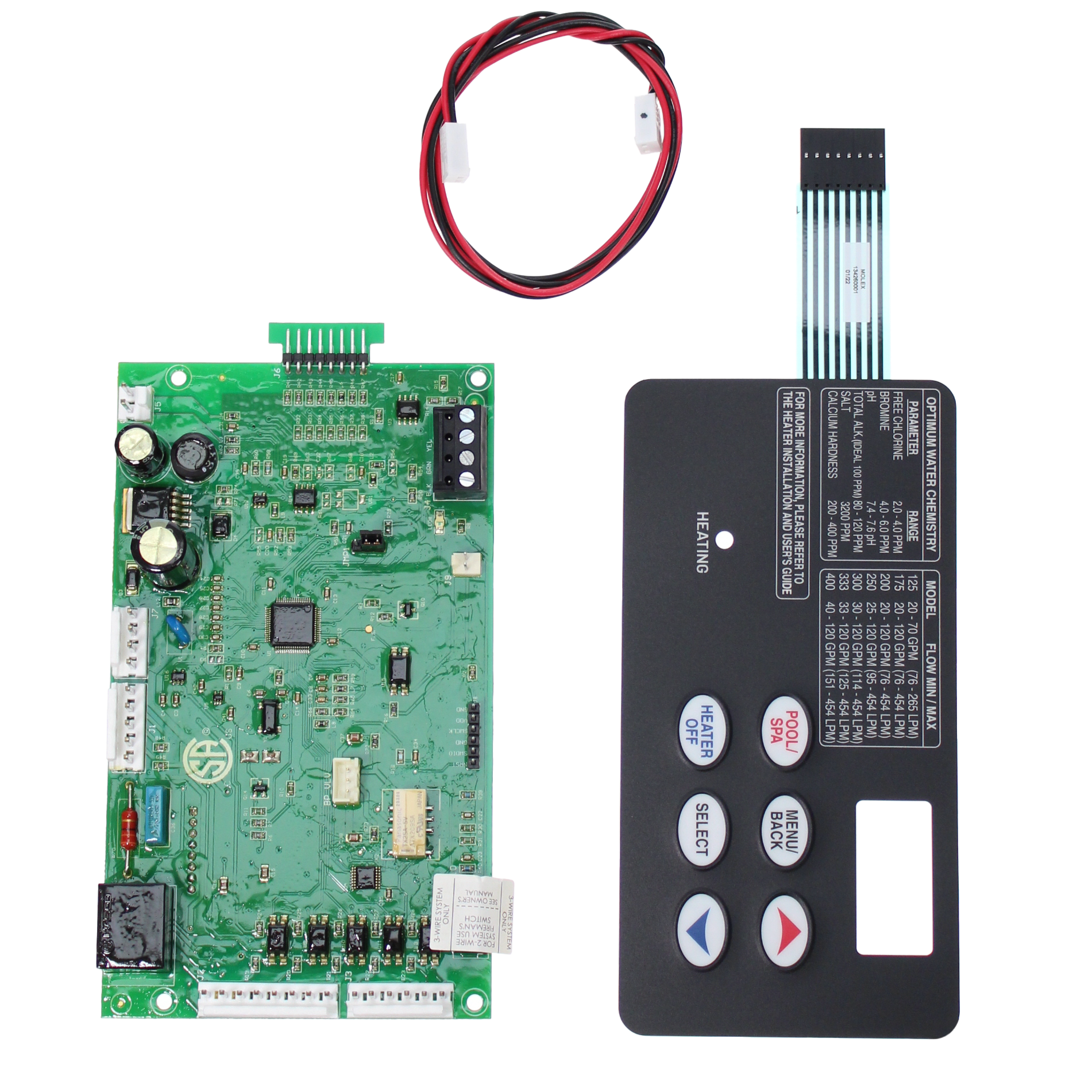

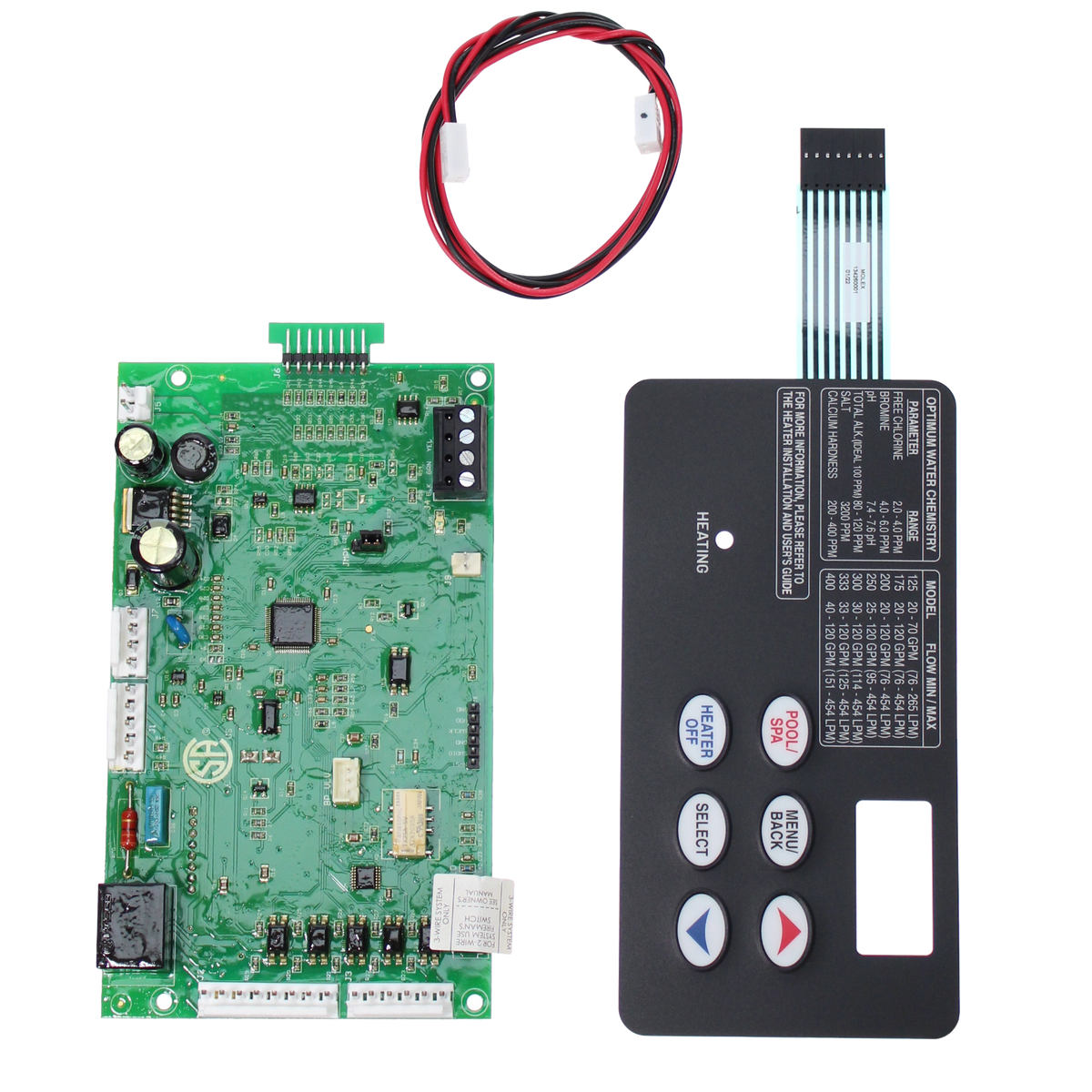

The Pentair 461105 MasterTemp/Max-E-Therm Control Board with 6-Button Pad is a genuine OEM replacement control module designed to restore full digital command functionality to qualifying MasterTemp® and Max-E-Therm® pool heaters. This fully integrated board manages ignition sequencing, temperature control, safety diagnostics, error reporting, and user input via the 6-button pad interface.
When your existing control board malfunctions due to age, electrical surge, or component failure, replacing it with the 461105 unit restores reliable heater performance and ensures accurate system feedback. Built to exact Pentair standards, this control assembly is the central processor that keeps your heater functioning safely and efficiently.
Pentair 461105 MasterTemp/Max-E-Therm Control Board with 6-Button Pad Compatibility
-
Designed for Pentair MasterTemp® pool heaters
-
Compatible with Pentair Max-E-Therm® gas heaters
-
Works with models that originally use a 6-button control pad configuration
-
Suitable for natural gas and propane heaters as specified by original equipment
-
Integrates with standard heater wiring, sensors, and user interfaces
Frequently asked questions
How do I know the board has failed?
Typical symptoms are a dead display, relays that will not latch, erratic scheduling, or a system that resets on its own. Before replacing a board, rule out the transformer, the incoming supply voltage and any blown fuses, since those faults present the same way.
What is the part number for this control board?
Pentair lists this control board under part number 461105. Quote 461105 when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
Do I need the exact revision of this board?
Yes. Boards in the same family are often not interchangeable across revisions because the firmware, connector layout and relay count change. Match the number printed on your existing board rather than the model name on the equipment housing.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Pentair equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Should an electrician install this?
Replacing a control board means working inside an energised enclosure. Cut power at the breaker first, and if you are not comfortable identifying line and load connections, have a pool professional or electrician do the swap.
Is there a warranty on this control board?
It carries the standard Pentair manufacturer warranty. The terms are set by Pentair, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
