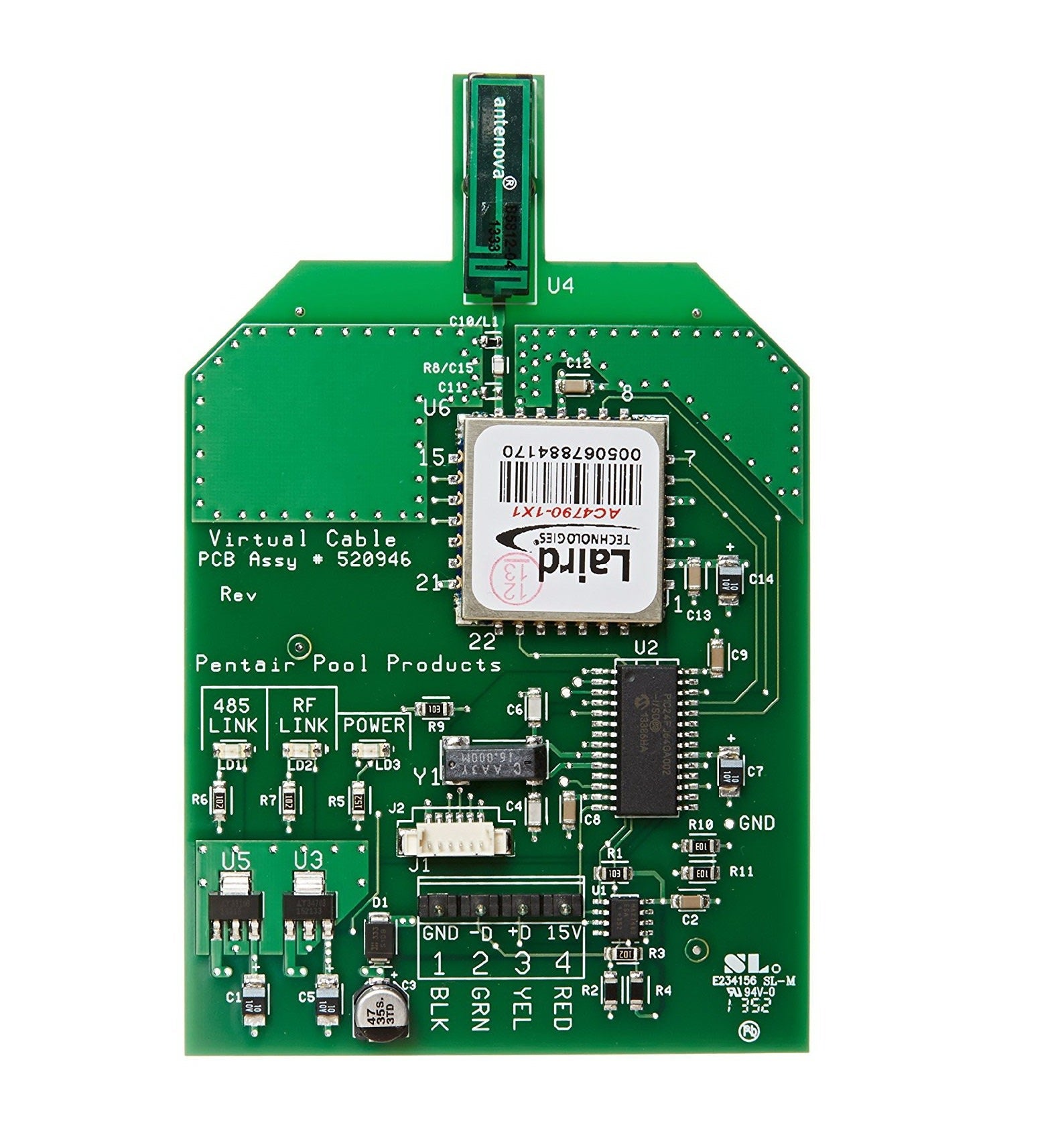

Pentair MobileTouch II Transceiver Circuit Board | 520946Z
Couldn't load pickup availability
Got questions?
Feel free to get in touch
The Pentair 520946Z MobileTouch II Transceiver Circuit Board is a genuine OEM replacement component designed for Pentair MobileTouch II pool automation systems. This transceiver board enables wireless communication between the MobileTouch control panel and compatible Pentair automation equipment, ensuring seamless data transmission, remote control commands, and system feedback without direct wiring.
Manufactured to Pentair’s exacting standards, the 520946Z transceiver board delivers dependable performance and restores full communication functionality when the original board fails due to age, electrical issues, or environmental stress. This part is essential for maintaining reliable automation interactions and extending the life of your MobileTouch II system.
Pentair 520946Z MobileTouch II Transceiver Circuit Board Compatibility
-
Designed specifically for Pentair MobileTouch II pool automation systems
-
Compatible with Pentair wireless-enabled automation components
-
Works with Pentair IntelliCenter®, EasyTouch®, and IntelliTouch® systems that integrate with MobileTouch II
-
Suitable for residential and commercial pool automation setups
-
Replaces original transceiver boards that have lost communication capability
Frequently asked questions
How do I know the board has failed?
Typical symptoms are a dead display, relays that will not latch, erratic scheduling, or a system that resets on its own. Before replacing a board, rule out the transformer, the incoming supply voltage and any blown fuses, since those faults present the same way.
What is the part number for this control board?
Pentair lists this control board under part number 520946Z. Quote 520946Z when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
Do I need the exact revision of this board?
Yes. Boards in the same family are often not interchangeable across revisions because the firmware, connector layout and relay count change. Match the number printed on your existing board rather than the model name on the equipment housing.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Pentair equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Should an electrician install this?
Replacing a control board means working inside an energised enclosure. Cut power at the breaker first, and if you are not comfortable identifying line and load connections, have a pool professional or electrician do the swap.
Is there a warranty on this control board?
It carries the standard Pentair manufacturer warranty. The terms are set by Pentair, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
