Pentair Sta-Rite 013067 IntelliPro3 VSF Pool Pump — 1.5 THP Variable Speed with Touchscreen, 115/208-230V — Genuine OEM
Couldn't load pickup availability
Got questions?
Feel free to get in touch

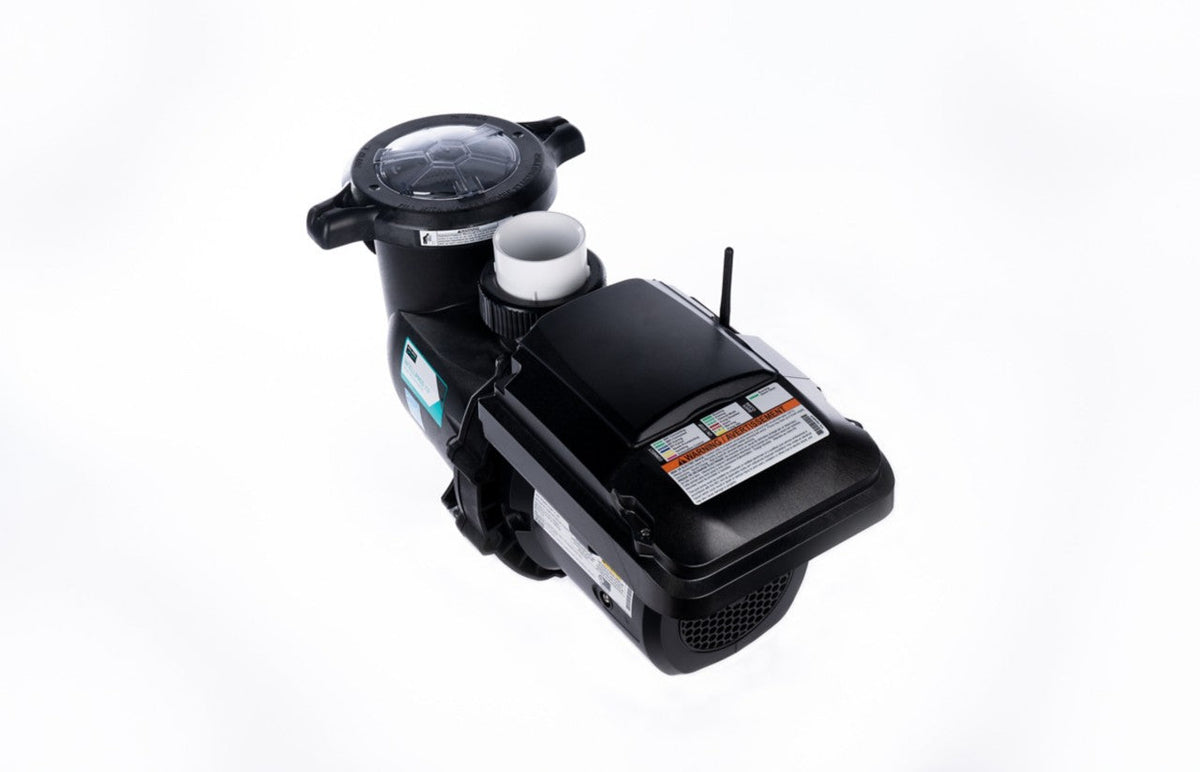

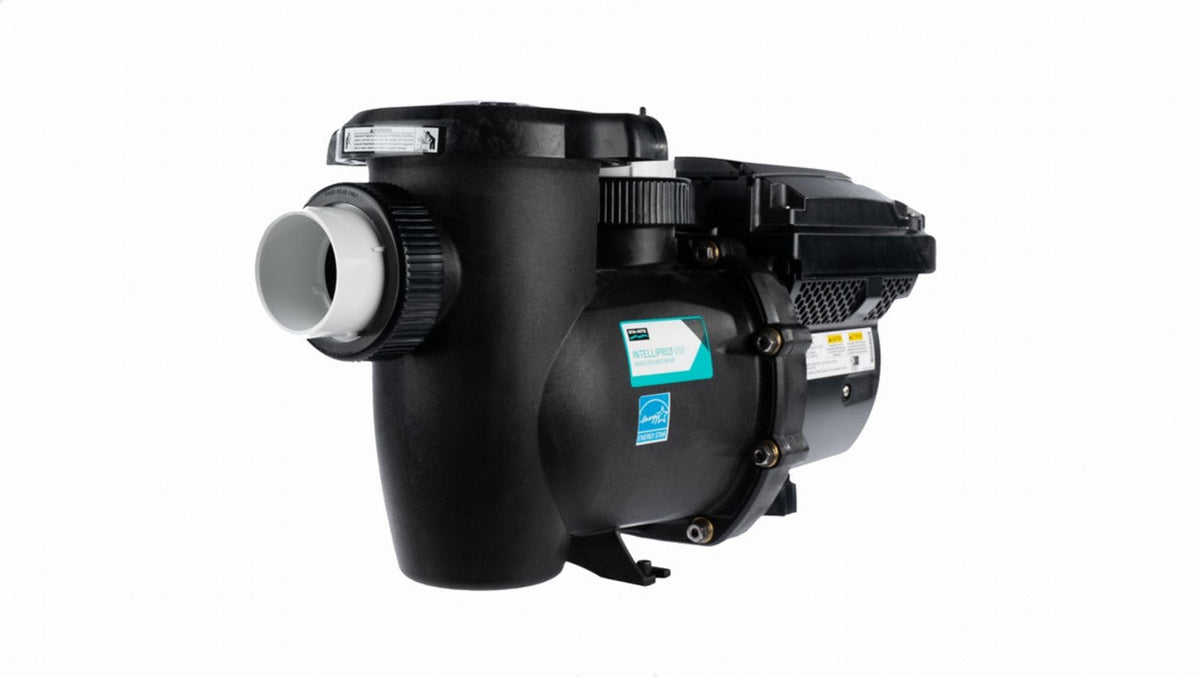

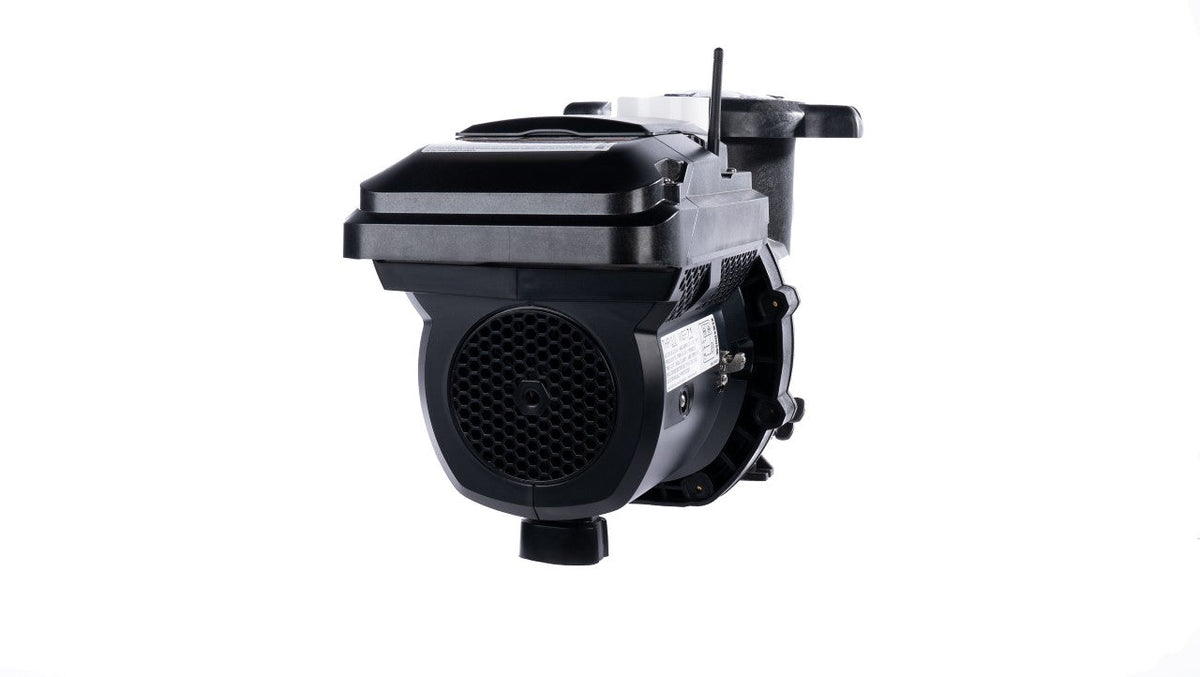

The Sta-Rite 013067 IntelliPro3 VSF is the 1.5 THP variable speed and flow pool pump with the colour touchscreen built in. Speeds, schedules and flow targets are set right on the pump at the equipment pad, and the same pump is reachable from the Pentair Home app over WiFi.
Which IntelliPro3 Do I Need?
All four 1.5 HP IntelliPro3 pumps are the same pump hydraulically and electrically. The only difference is which control hardware is factory-fitted:
- 013065 — base, no touchscreen, no relay board
- 013066 — I/O relay board only
- 013067 (this one) — touchscreen, no relay board
- 013068 — touchscreen and I/O relay board
The I/O board adds two onboard relays so the pump itself can switch a pool light or salt cell. If you already run IntelliCenter or EasyTouch, you do not need it — your automation already does that job, and 013067 is the right choice. If you have no automation panel and want the pump to control a light or salt cell directly, choose 013068 instead.
Already bought this one and want the relays later? The 356365Z relay control board kit is the field-installable upgrade.
⚠️ This Pump Is Not Equipped with SVRS
Pentair's installation guide states plainly that this pump "is not equipped with Safety Vacuum Release System (SVRS) protection and does not protect against body or limb entrapments." If your installation requires SVRS, you need a different pump or an approved SVRS device.
Efficiency
Rated WEF 9.4 against a DOE minimum of 6.84 — roughly 37 percent better than the federal floor — and ENERGY STAR certified. Being a true variable speed pump, it also satisfies California's variable speed requirement for pool pump replacements. Running at low speed for longer is where the savings come from: at 1634 RPM it moves 31 GPM on about 124 watts.
Key Features
- Colour touchscreen on the pump: set speeds and schedules at the pad, no laptop or panel needed.
- 400 to 4000 RPM, 20 to 90 GPM: true variable speed with flow control.
- Dual voltage: wires for 115V or 208-230V single phase.
- Connected: WiFi, Bluetooth and the Pentair Home app, plus RS-485 for IntelliCenter and EasyTouch.
- ECM permanent magnet motor: quieter and far more efficient than an induction motor.
- Fits 1.5 in or 2 in plumbing: the reducer bushing ships in the box.
Specifications
- Part Number: 013067
- Series: IntelliPro3 VSF, Sta-Rite black cabinet
- Control Hardware: Touchscreen HMI, no I/O relay board
- Total Horsepower: 1.5 THP (0.896 hydraulic HP)
- Voltage: 115 / 208-230 VAC, 50/60 Hz, single phase
- Full Load Amps: 12.0 A at 115V, 6.4-5.9 A at 208-230V
- Max Input Power: 1350 W
- Flow Range: 20-90 GPM
- Speed Range: 400-4000 RPM
- Max Head: approximately 70 ft of water
- Plumbing: 1.5 in or 2 in, reducer bushing included
- Motor: electronically commutated permanent magnet (ECM)
- Energy Factor: WEF 9.4 kgal/kWh
- Pump Weight: 48 lb
- Enclosure: NEMA Type 3 / IPX5
- Certifications: UL 1081, NSF/ANSI/CAN 50, ENERGY STAR certified
- Almond IntelliFlo3 Equivalent: 011067
- Replacement Drive: 356162Z
Installation Requirements
Pentair requires installation by a licensed or certified electrician, with GFCI protection. Bonding needs a solid copper conductor no smaller than 8 AWG (6 AWG or larger in Canada). Note the voltage difference when sizing the circuit: at 115V the pump draws 12.0 A, at 208-230V only 6.4-5.9 A.
Frequently Asked Questions
What is the difference between 013067 and 013068?
Only the I/O relay board. Both have the touchscreen. 013068 adds two onboard relays (5 A and 16 A) so the pump can switch a pool light, salt cell or booster pump directly. If you have an automation panel already, 013067 is the one you want.
Is this the same as the IntelliFlo3 011067?
Mechanically yes. IntelliPro3 is the Sta-Rite-branded black cabinet sold through the trade channel; IntelliFlo3 is the Pentair-branded almond version. Same pump, same WEF 9.4, different colour and channel.
Does it work with IntelliCenter or EasyTouch?
Yes. RS-485 is built in, so it connects to Pentair automation the same way the IntelliFlo3 does.
Can I run it on 115V?
Yes, it is dual voltage. Be aware it draws 12.0 A at 115V versus 6.4-5.9 A at 208-230V, so a 115V installation needs meaningfully more circuit capacity. Your electrician should size accordingly.
Does it come with the strainer pot?
Yes. This is a complete pump, not a drive or motor only. The strainer pot and basket are part of it.
Do I need 2 inch plumbing?
No. It ships configured for 2 in with a reducer bushing included for 1.5 in, so either works without buying adapters.
Is there a variable speed law that requires this?
Federal DOE efficiency standards for pool pumps have been in force since July 2021, and California requires variable speed for pool pump replacement motors of 0.5 HP and above. This pump is DOE compliant at WEF 9.4 and ENERGY STAR certified.
Frequently asked questions
What is the part number for this pump?
Pentair lists this pump under part number 013067. Quote 013067 when you cross-reference it against your equipment manual, an existing pump, or a parts diagram, so you are comparing the same configuration.
How do I confirm this fits my equipment?
Check your plumbing size, available voltage and circuit capacity, and whether you need the onboard relay board. If you are unsure which of the four IntelliPro3 variants suits your pad, send us your setup before ordering and we will confirm.
Does pool pump work need an electrician?
Yes. Pool equipment sits under specific electrical code requirements covering bonding, grounding and GFCI protection. Cut power at the breaker before any work, and have a licensed professional handle the supply side and bonding.
Is there a warranty on this pump?
This is a Pentair TradeGrade product. Pentair states that TradeGrade products are intended to be exclusive to retail stores, pool builders or pool service companies, and that a product purchased online receives a sixty day limited warranty. It is not eligible for the three-year bundle warranty. Review Pentair's current terms before purchasing and keep your receipt and packaging.
