Waterway 540-6610 Renegade Gunite Skimmer — 2" Socket x 2½" Spigot, Float Valve, White, 75 GPM
Couldn't load pickup availability
Got questions?
Feel free to get in touch

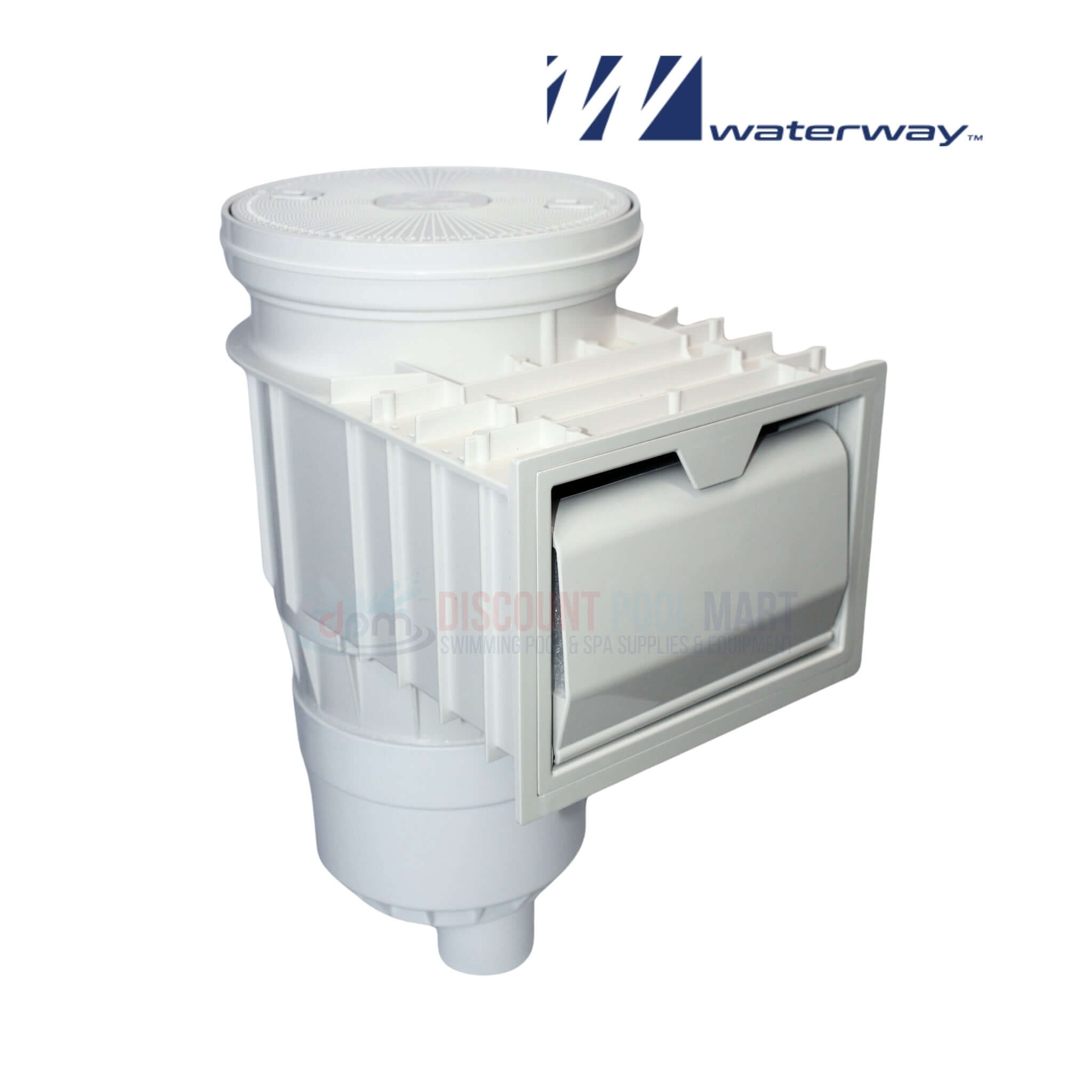

The Waterway 540-6610 Renegade Gunite Skimmer is a heavy-duty in-ground skimmer built specifically for gunite pool construction. The two-port white body uses solvent-weld PVC socket connections for strong glue joints, and its NSF-approved 75 GPM rating delivers high-volume surface skimming. A float valve and spring-loaded weir door keep water intake smooth and uninterrupted.
Key Features
- Built for gunite pools: Engineered for easier installation in gunite construction while maximizing flow.
- 75 GPM, NSF approved: High flow rate for efficient debris removal.
- Float valve included: Protects the pump from losing prime as water level drops.

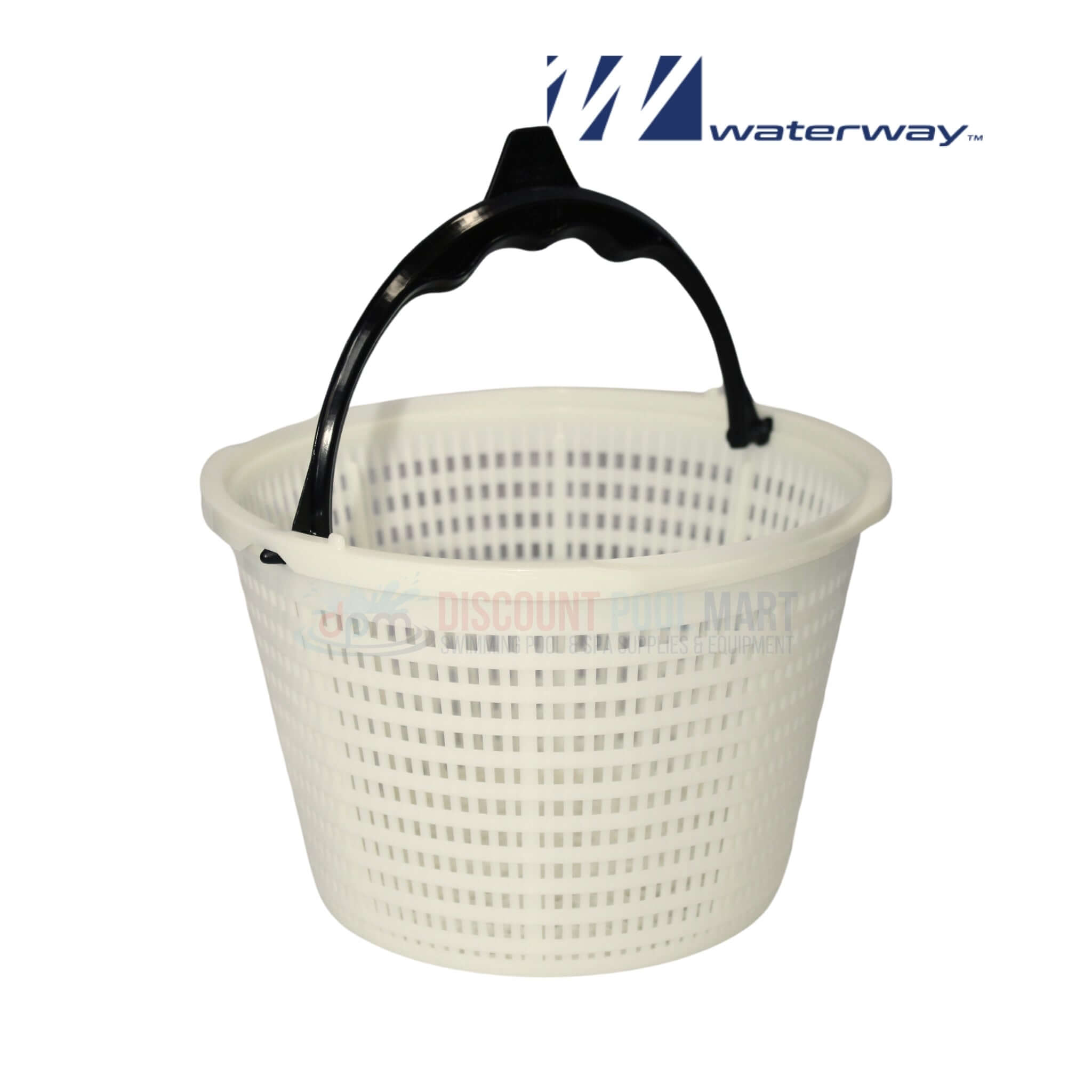

- Large locking basket: Snap-lock handle keeps the basket in place; easy debris removal.
- Spring-loaded weir door: Smooth operation and simple replacement when worn.

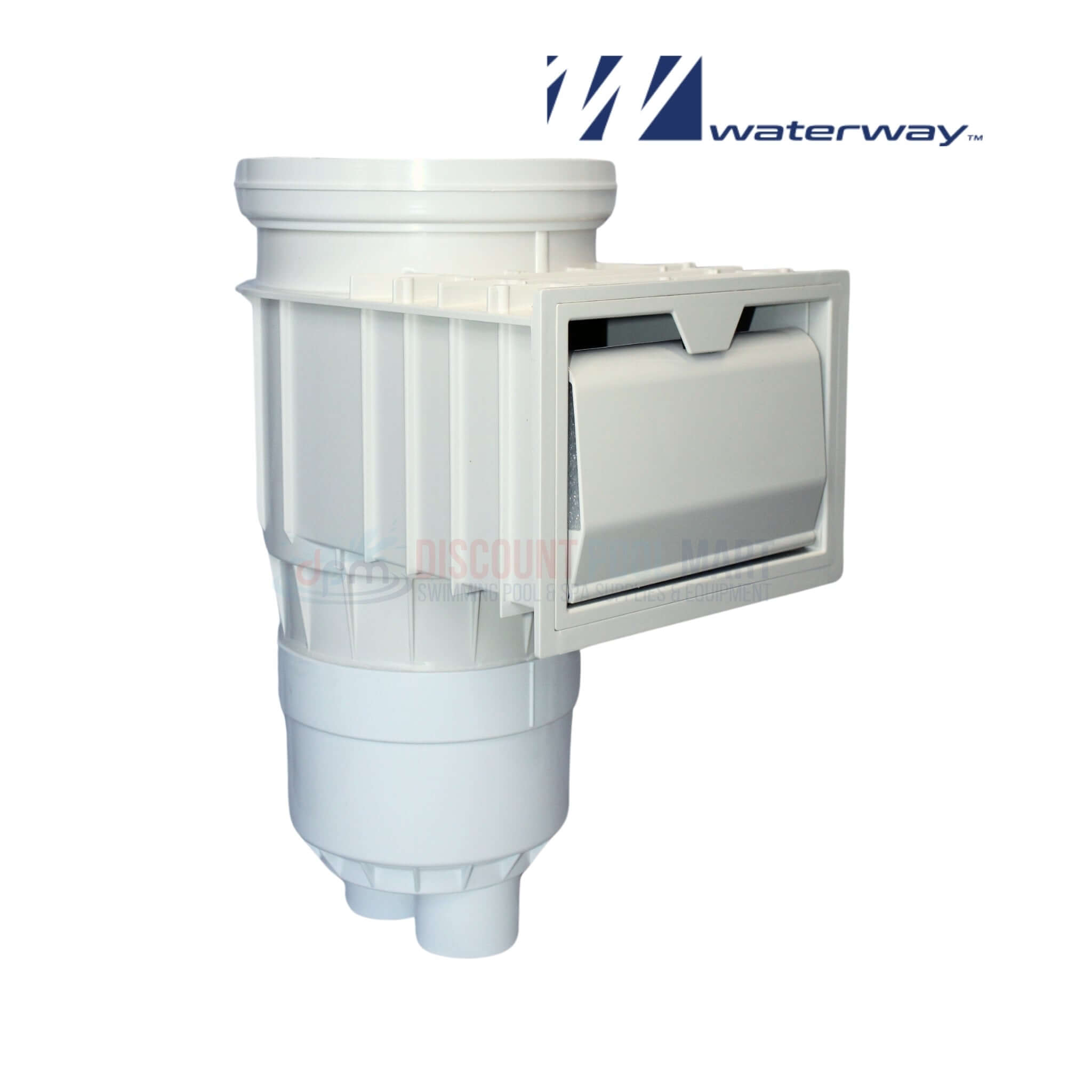

- Multiple plumbing ports: 2" socket, 2½" spigot, plus a ½" socket for an overflow line.
- PVC construction: Renegade bodies are PVC for stronger, more reliable glue joints.

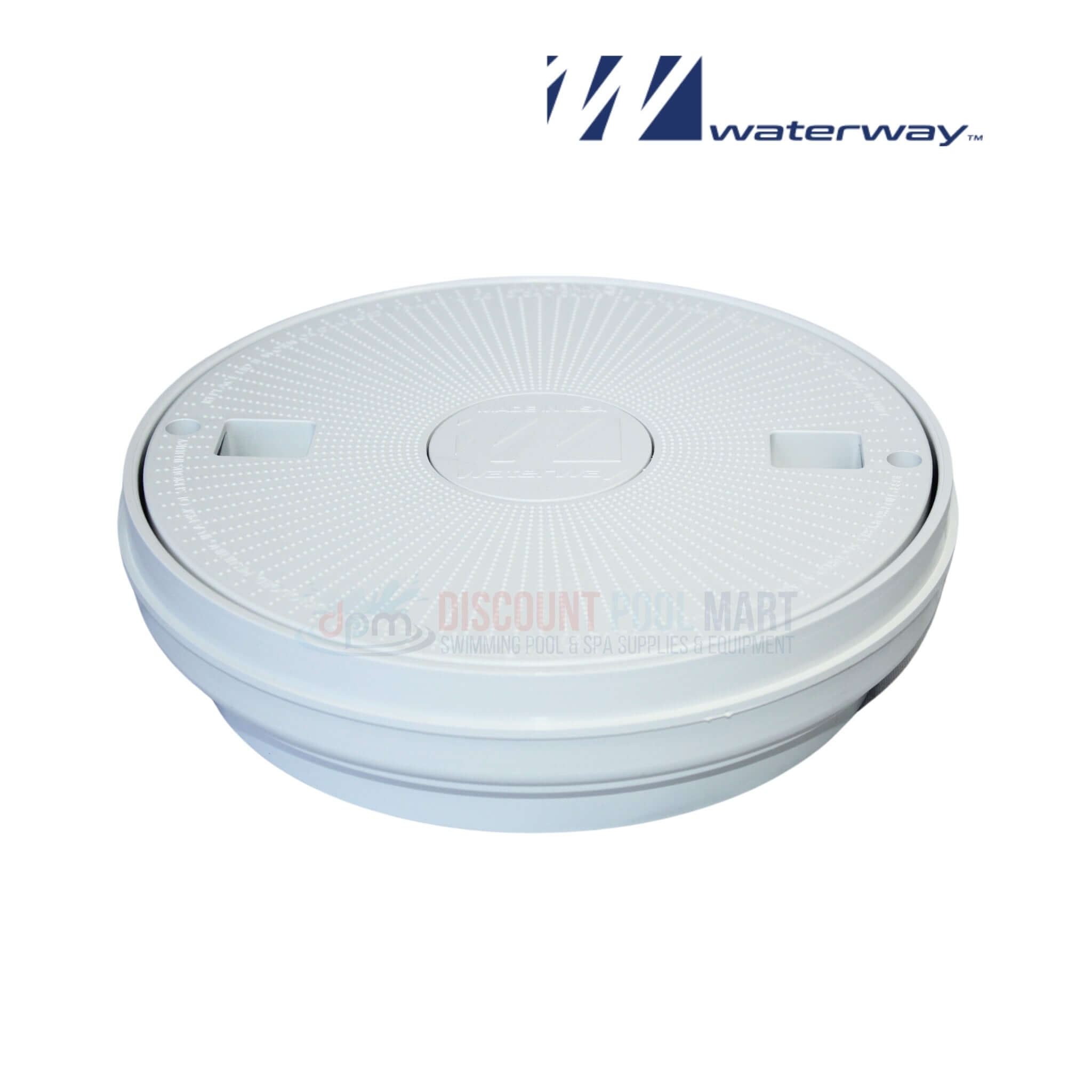

- Round lid, white finish: Standard deck-level appearance.
Specifications
- Part Number: 540-6610
- Type: In-ground gunite skimmer, 2 port
- Plumbing: 2" socket x 2½" spigot; ½" overflow socket
- Flow Rate: 75 GPM
- Material: PVC
- Color: White
- Lid: Round
- Float Valve: Included
- UPC: 806105098931
- Certification: NSF approved
- Brand: Waterway Plastics
Frequently Asked Questions
Is this for gunite pools only?
It's designed and sized specifically for gunite construction. Vinyl-liner and fiberglass pools use different skimmer bodies with different mounting flanges.
What does the float valve do?
It seals off the skimmer throat if the water level drops too far, helping to prevent the pump from losing prime and running dry.
What plumbing connections does it have?
A 2" socket and a 2½" spigot for the main lines, plus a ½" socket that accepts an overflow or auto-fill line.
Is the basket included?
Yes — the skimmer ships with its large locking basket and spring-loaded weir door.
Why PVC instead of ABS?
PVC bodies bond more reliably with standard PVC pipe and PVC cement, producing stronger, longer-lasting glue joints.
Does this need professional installation?
Skimmer bodies are set during pool construction or a major renovation and should be installed by a qualified pool professional.
Frequently asked questions
How do I identify my skimmer model?
Skimmer bodies are identified by the throat width, the lid diameter and the port configuration. The model name is often moulded into the underside of the lid or the collar - check there before measuring.
What is the part number for this skimmer?
Waterway lists this skimmer under part number 5406610. Quote 5406610 when you cross-reference against your equipment manual, an existing part, or a parts diagram, so you are comparing the same revision.
Why is my skimmer not pulling water properly?
The usual causes are a full basket, a weir door that is stuck or missing, a partially closed valve, or an air leak on the suction side. Low water level is the single most common explanation - if the water drops below the throat, the skimmer draws air instead.
How do I confirm this fits my equipment?
Match the part number stamped on the component you are replacing, or look it up in the parts list for your Waterway equipment. If your model or serial number is not named on this page, send it to us before you order and we will confirm the fit.
Are skimmer lids and baskets interchangeable between brands?
Rarely. Lid diameters and basket collars differ between manufacturers and between generations of the same manufacturer's skimmer. Measure the opening on your skimmer and compare it with the dimensions listed above.
Is there a warranty on this skimmer?
It carries the standard Waterway manufacturer warranty. The terms are set by Waterway, and on some equipment the coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you have confirmed correct operation.
