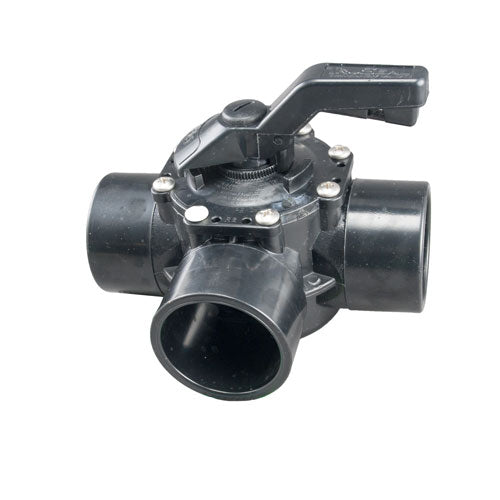

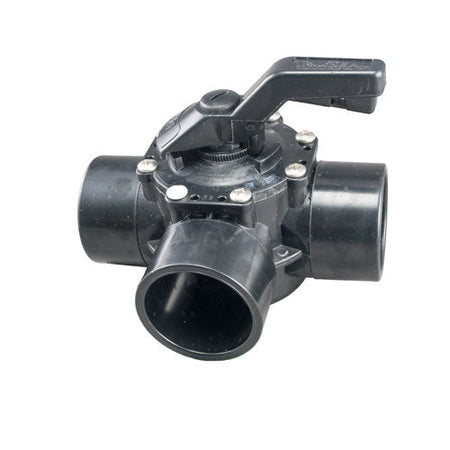

Waterway 600-7100-CPVC TruSeal 3-Way Diverter Valve — 2" Socket x 2½" Spigot, CPVC, No-Lube Seal
Couldn't load pickup availability
Got questions?
Feel free to get in touch
The Waterway 600-7100-CPVC TruSeal Diverter Valve is a 3-way valve built from corrosion-resistant CPVC for the most demanding pool and spa plumbing. Its Teflon-laminated silicone seal never needs lubrication for the life of the valve, and the Click and Lock handle offers 72 locking positions for precise flow control.
Key Features
- Never needs lubrication: Teflon-laminated silicone seal eliminates the annual re-greasing other diverter valves require.
- CPVC construction: Corrosion-resistant and rated for higher temperatures than standard PVC — suitable for heater and spa runs.
- 72-position Click and Lock handle: Squeeze the trigger and set virtually any diversion ratio.
- Deep sockets: Deeper than competing valves for stronger glue joint bonding.
- Dual plumbing compatibility: Works with both 2" and 2½" PVC and CPVC pipe.
- Universal shaft spline: Adapts to most standard valve actuators for automation.

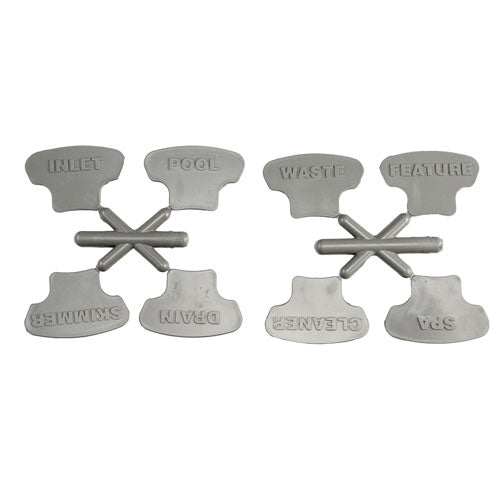

- Flow indicator labels: Removable tags mark the inlet port for clear identification.
- Positive shut-off: Stoppers on the valve cover stop the diverter at full port shut-off.
Specifications
- Part Number: 600-7100-CPVC
- Type: 3-way diverter valve
- Plumbing: 2" socket x 2½" spigot
- Compatible Pipe: 2" and 2½" PVC or CPVC
- Material: CPVC
- Seal: Teflon-laminated silicone, lubrication-free
- Handle: Click and Lock, 72 positions
- UPC: 806105102843
- Brand: Waterway Plastics — Made in the USA
Frequently Asked Questions
Does this valve really never need lubrication?
The Teflon-laminated silicone seal is designed to operate without grease for the service life of the valve — a meaningful maintenance saving over conventional diverter valves.
What's the advantage of CPVC over PVC here?
CPVC handles higher temperatures, which makes it the better choice on heater returns and spa plumbing where hot water passes through the valve.
Can I automate this valve?
Yes. The universal shaft spline pattern accepts most standard pool valve actuators.
Will it fit my 2½" plumbing?
Yes — the 2" socket and 2½" spigot arrangement lets a single valve serve both 2" and 2½" systems.
Can I remove the handle?
The handle should not be removed during use unless a valve actuator is being installed in its place.
What is a 3-way diverter used for?
It splits or redirects flow between two destinations — common on spa spillovers, heater bypasses, solar loops, and water features.
